Removal & Installation: Removal

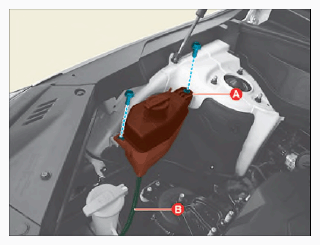

  1. Remove the reservoir tank
  1. Separate the over flow hose (B).
  2. Remove the reservoir tank (A) after removing the bolts.

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

G15692678Courtesy of KIA MOTORS AMERICA, INC.
