Removal & Installation: Removal

Disconnect the negative (-) battery terminal.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

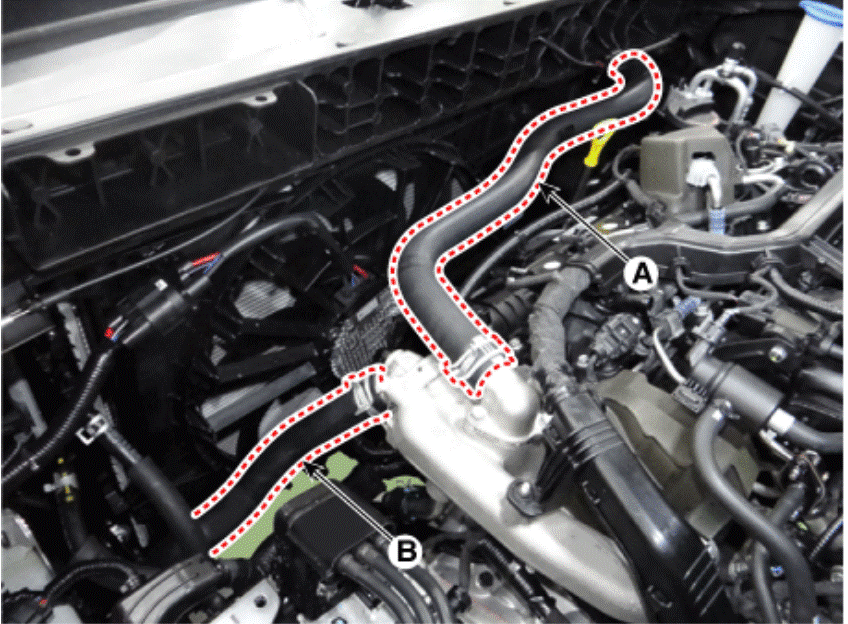

Disconnect the radiator upper hose (A) and lower hose (B) after releasing the clamps.

Courtesy of KIA MOTORS AMERICA, INC.

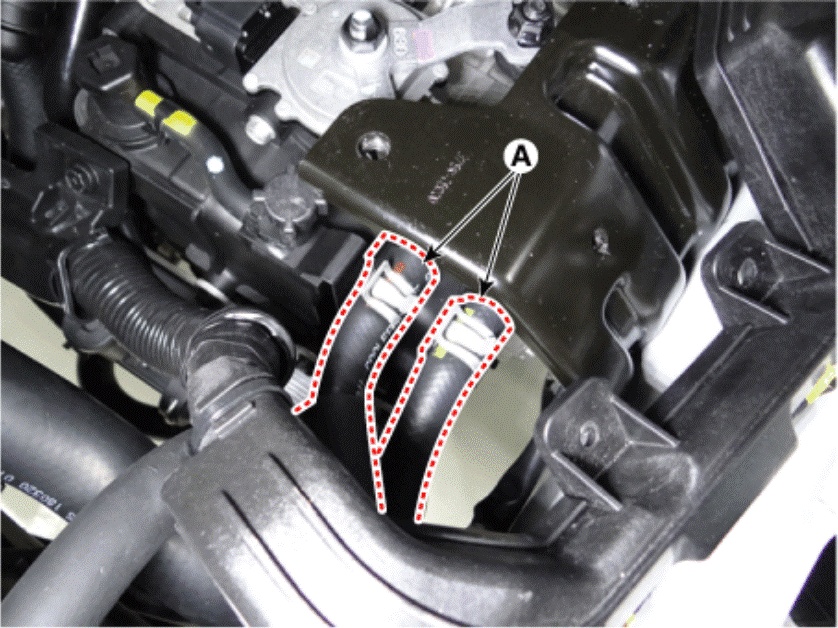

Separate the ATF cooler hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper beam.
(Refer to Body - "FRONT BUMPER BEAM ASSEMBLY ")

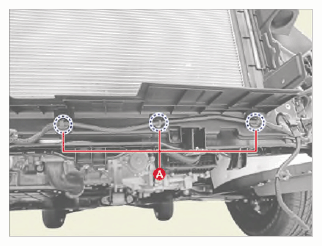

Remove the air intake shield (A) after removing the bolts and fasteners.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

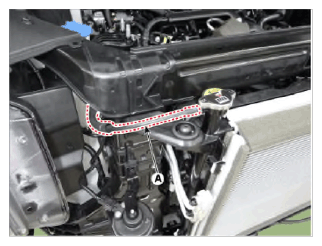

Remove the air guard wiring after removing the clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

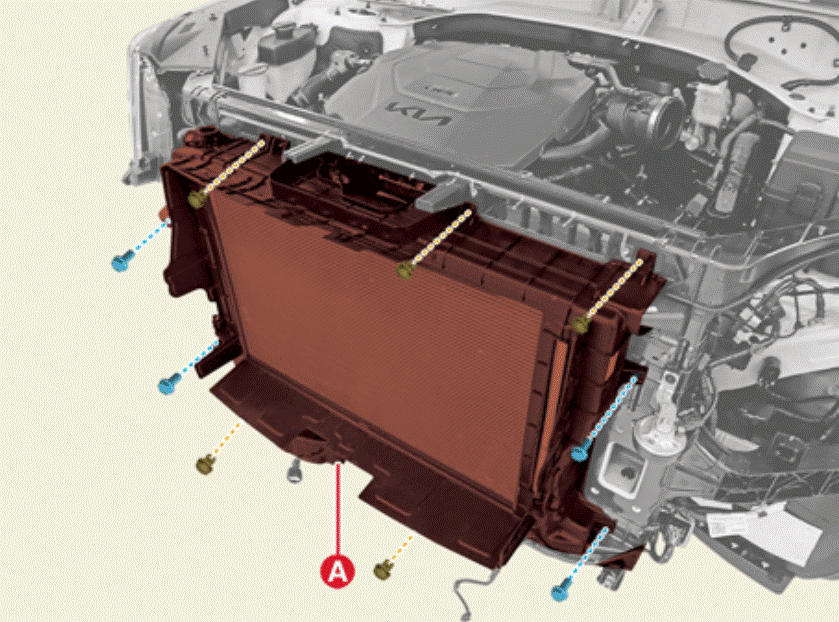

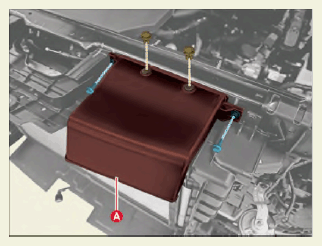

Remove the air guard (A) after removing the bolts and fasteners.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

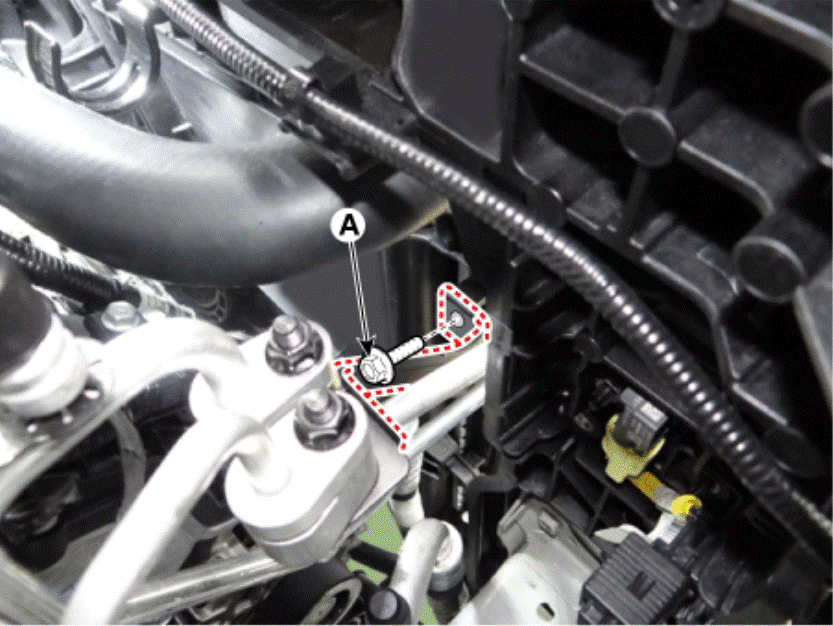

Remove the A/C pipe mounting bolt (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

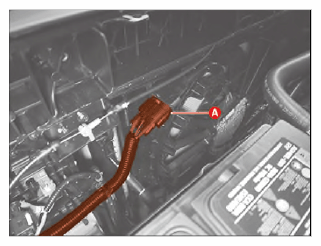

Disconnect the cooling fan connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the reservoir hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator upper mounting bracket (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

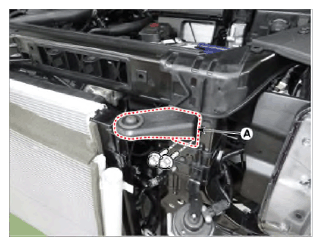

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

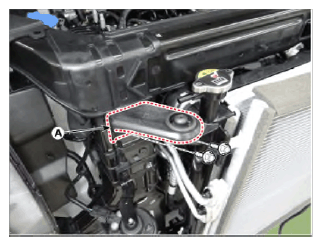

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

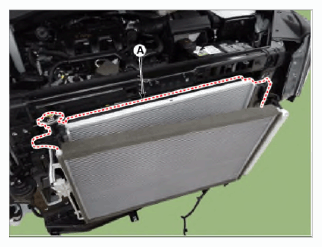

Remove the radiator assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan assembly from the radiator.
(Refer to Cooling System - "COOLING FAN ")
