Radiator Leakage Test

  1. Wait for the engine to cool. Carefully remove the radiator cap and fill the radiator with engine coolant. Then, install it on the pressure tester.

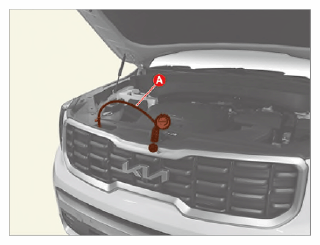

  2. Apply a pressure tester to the radiator and apply a pressure of 79.43-122.58 kpa (0.81-1.25 kg/cm2 , 11.52-17.78 psi).
    G15692677Courtesy of KIA MOTORS AMERICA, INC.
  3. Inspect for engine coolant leaks and a drop in pressure.
  4. Remove the tester and reinstall the radiator cap.
    NOTE: Check for engine oil in the coolant and/or coolant in the engine oil.
