Removal & Installation: Removal
- Disconnect the negative (-) battery terminal.
- Remove the radiator.
(Refer to Cooling System - "RADIATOR ")

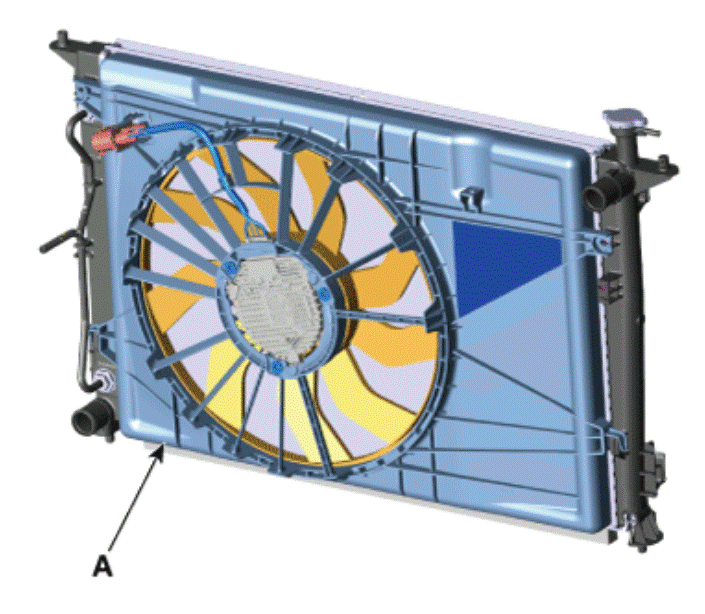

- Remove the cooling fan assembly (A).
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)
