Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wireless Power Charger Diagnosis >> DTC B1603-00: CAN Bus Off >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

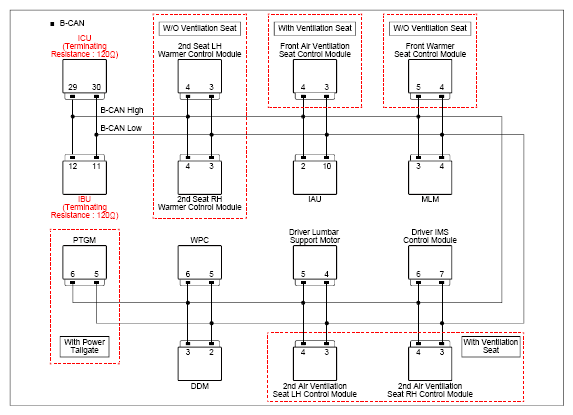

G15720571Courtesy of KIA MOTORS AMERICA, INC.
