Removal & Installation: Removal

Remove the crash pad center garnish [Driver's side].
(Refer to Body - "CRASH PAD GARNISH ")

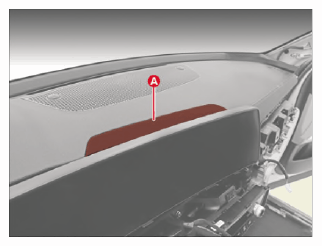

Remove the center fascia upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

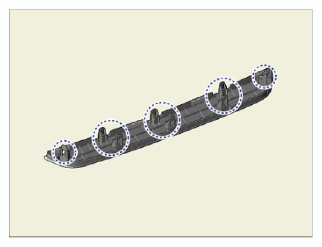

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

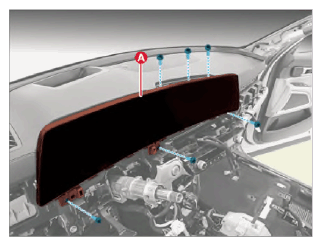

Remove the cluster (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

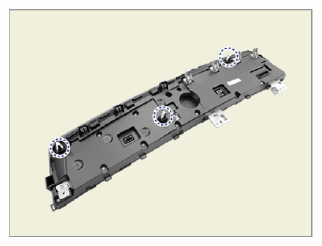

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

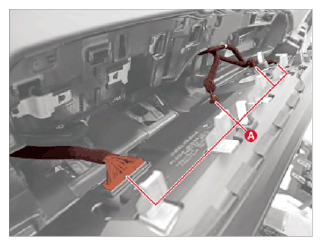

Disconnect the cluster connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
