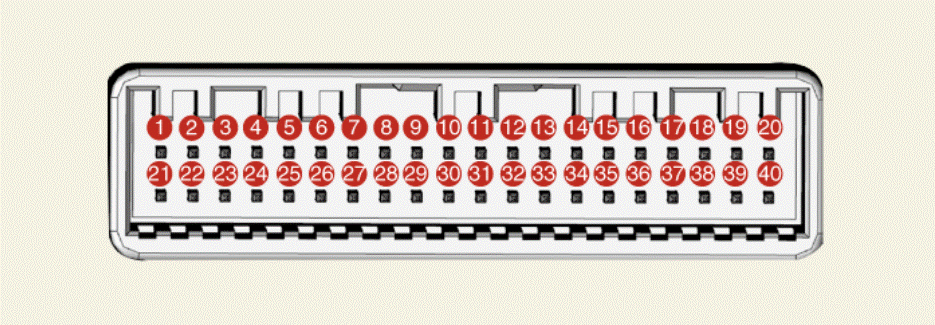

| 1 |
Ground |
| 2 |
Illumination (-) |
| 3 |
Rheostat switch (Down) Input |
| 4 |
Rheostat switch (UP) input |
| 5 |
Detent |
| 6 |
AT ('P' Position) |
| 7 |
AT ('R' Position) |
| 8 |
AT ('N' Position) |
| 9 |
AT ('D' Position) |
| 10 |
AT ('S' Position) |
| 11 |
- |
| 12 |
Vehicle speed (output) |
| 13 |
- |
| 14 |
Fuel sender (+) input |
| 15 |
- |
| 16 |
Fuel sender (-) input |
| 17 |
- |
| 18 |
Airbag warning lamp |
| 19 |
- |
| 20 |
- |
| 21 |
Trip switch (-) input |
| 22 |
Trip switch 1 (+) input |
| 23 |
Trip switch 2 (+) input |
| 24 |
Drive mode switch (+) input |
| 25 |
Drive mode switch (-) input |
| 26 |
- |
| 27 |
- |
| 28 |
- |
| 29 |
M-CAN (Low) |
| 30 |
M-CAN (High) |
| 31 |
- |
| 32 |
C-CAN (High) |
| 33 |
C-CAN (Low) |
| 34 |
- |
| 35 |
- |
| 36 |
- |
| 37 |
Ground |
| 38 |
- |
| 39 |
IG 1 |
| 40 |
Battery (+) |
