Removal & Installation: Removal

  1. Remove the cluster.

    (Refer to Indicators and Gauges - "CLUSTER ")

  2. Remove the DC/DC converter

    (Refer to Engine Control/Fuel System - "DC/DC CONVERTER ")

  3. Remove the crash pad top cover

    (Refer to Body - "CRASH PAD TOP COVER ")

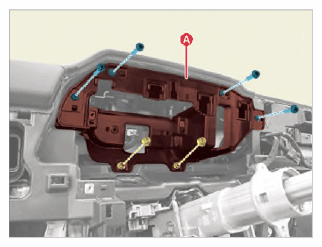

  4. Remove the cluster bracket (A) after removing the screws and nuts.
    G15710170Courtesy of KIA MOTORS AMERICA, INC.

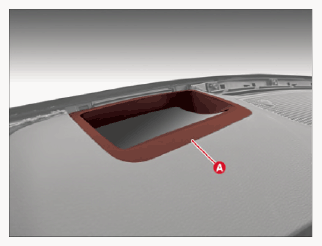

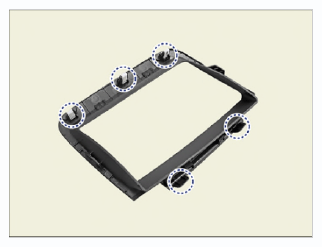

  5. Remove the Head-Up Display (HUD) cover (A).
    G15710171Courtesy of KIA MOTORS AMERICA, INC.
    G15710172Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15344695Courtesy of KIA MOTORS AMERICA, INC.

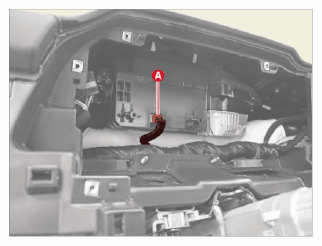

  6. Disconnect the HUD unit connector (A).
    G15710173Courtesy of KIA MOTORS AMERICA, INC.

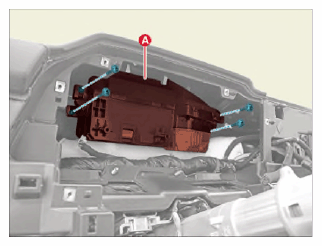

  7. Remove the HUD unit (A) after removing the screws.
    G15710174Courtesy of KIA MOTORS AMERICA, INC.
