Connector and Terminal Function

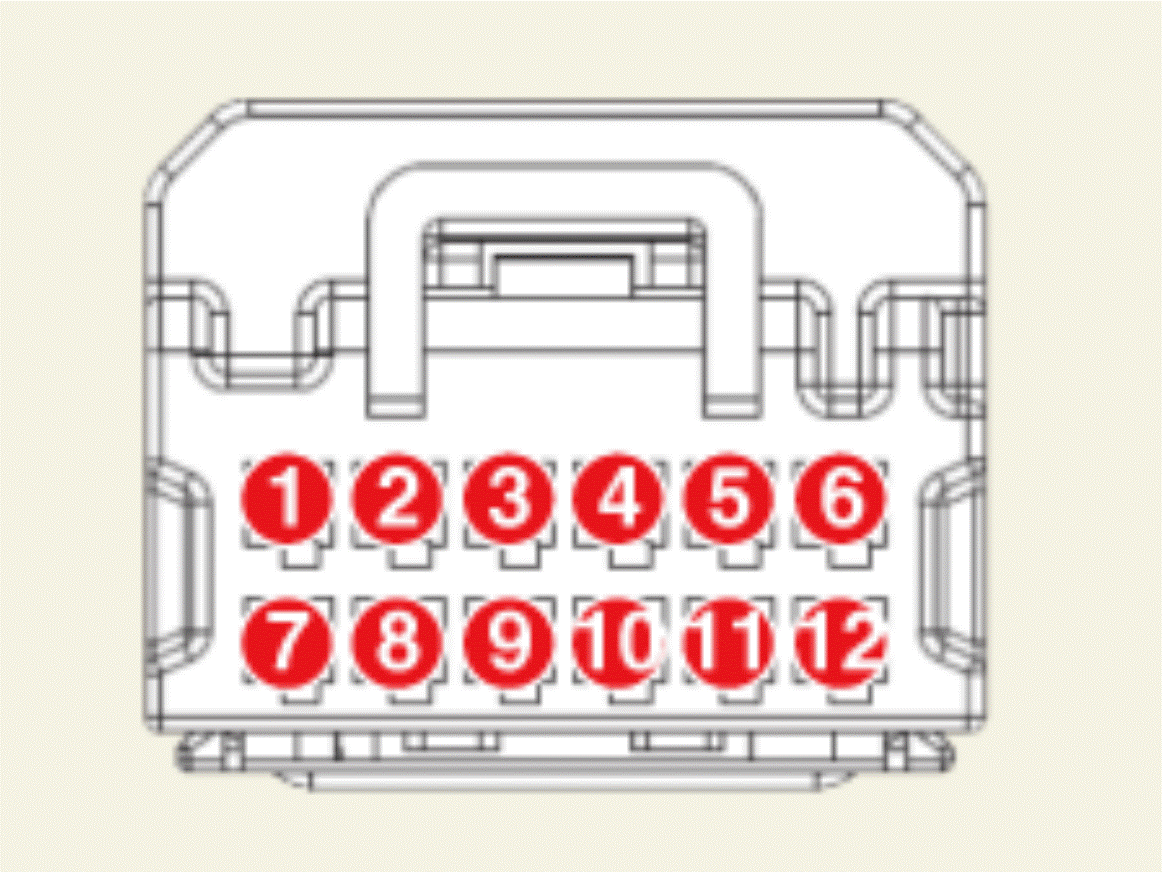

Connector A Terminal Function
G15710169Courtesy of KIA MOTORS AMERICA, INC.
 1 ICU Junction block (Fuse - Cluster)
2 -
3 Ground
4 M-CAN (Low)
5 -
6 C-CAN (Low)
7 ICU Junction block (Fuse - Module 12)
8 Low DC-DC converter (Audio) (B+ Output)
9 Ground
10 M-CAN (High)
11
12 C-CAN (High)
