Description & Operation: Description: Notes
HUD system displays various information on the windshield glass which minimizes the driver's eye movement to enhance safety and convenience.

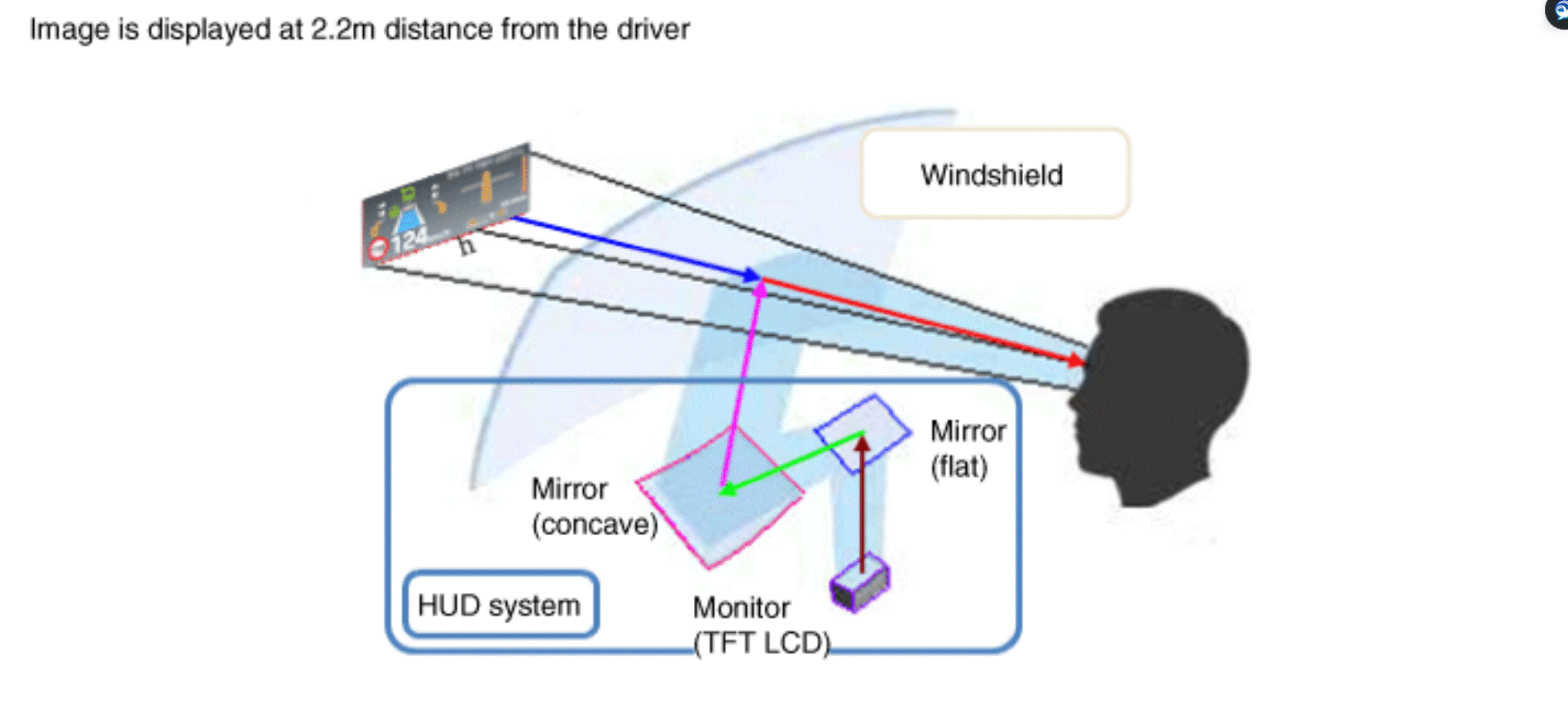

The Head Up Display reflects the cluster images to two mirrors (flat/concave) and displays them 2.2m ahead from the driver's eye.
Information provided by HUD
- Drive information: Vehicle speed
- Turn by Turn navigation information, road signs.
- ADAS: SCC, LKA, BCW
