Steering Column Shroud Lower Panel

Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD PANEL ")

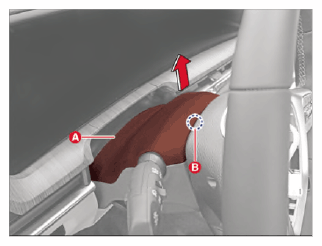

Separate the driver's side crash pad center garnish (A) by using the service hole (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

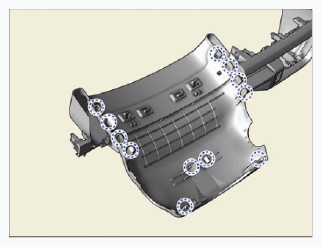

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

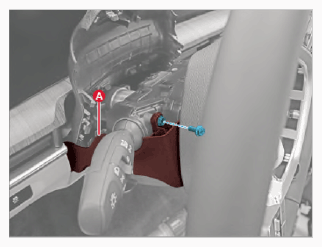

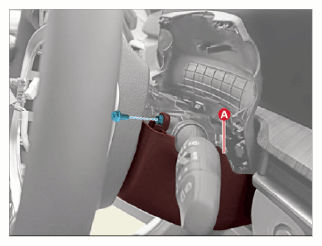

Turn the steering wheel left and right to remove the screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

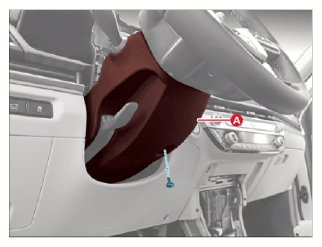

Remove the steering column shroud panel (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

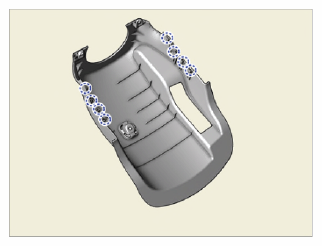

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
