Glove Box Housing

Disconnect the negative (-) battery terminal.
Remove the glove box.

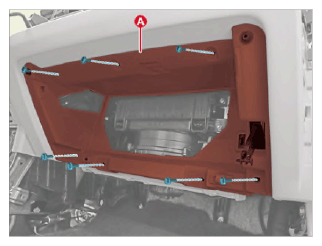

Remove the glove box housing (A) after removing the screws and bolts.
Tightening torque

Bolt: 6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

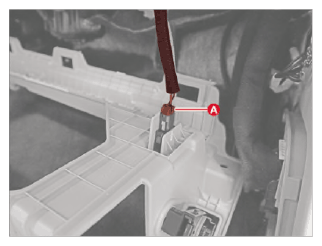

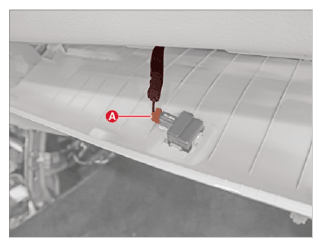

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
