Removal & Installation: Removal

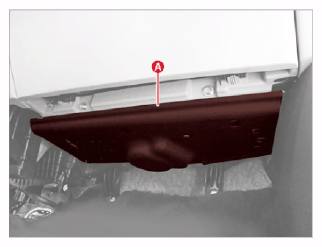

  1. Remove the crash pad under cover (A).
    G15709750Courtesy of KIA MOTORS AMERICA, INC.
    G15709751Courtesy of KIA MOTORS AMERICA, INC.

    Information

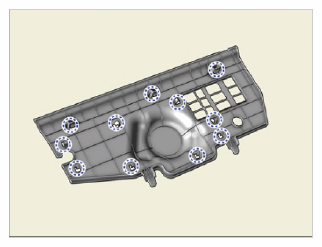

    Clip position:

G15335373Courtesy of KIA MOTORS AMERICA, INC.
