Removal & Installation: Removal

Remove the front door body side weatherstrip.
(Refer to Front Door - "FRONT DOOR WEATHERSTRIP ")

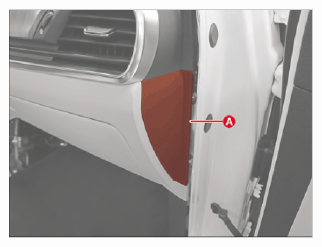

Remove the crash pad side cover (A).
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

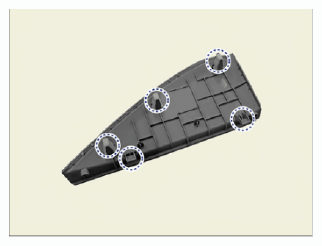

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

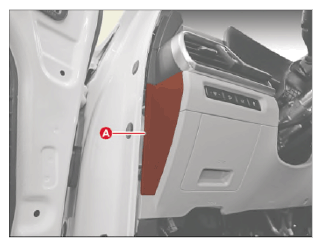

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
