Crash Pad Center Panel

Remove the floor console assembly.
(Refer to Crash Pad - "FLOOR CONSOLE ASSEMBLY ")
Remove the glove box housing.
(Refer to Crash Pad - "GLOVE BOX ")
Remove the heater and air conditioner control unit.
(Refer to Heating, Ventilation And Air Conditioning - "HEATER & A/C CONTROL UNIT ")

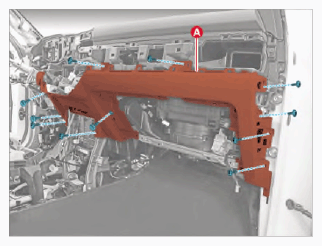

Remove the crash pad center panel (A) after removing the screws and bolts.
Tightening torque

Bolt: 6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

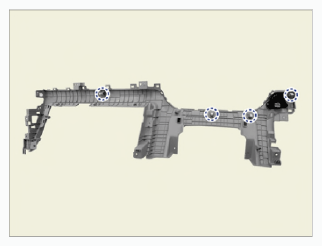

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

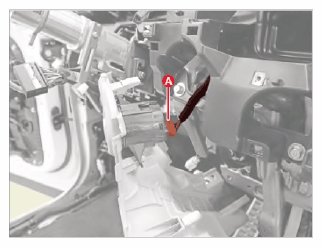

Disconnect the hazard switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
