Crash Pad Center Garnish [Passenger's Side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the passenger's side crash pad side cover.

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

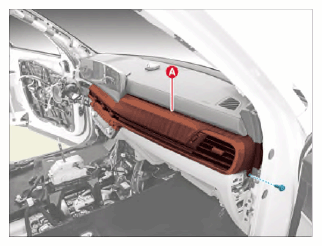

  3. Remove the passenger's side crash pad center garnish (A) after removing the screw.
    G15709744Courtesy of KIA MOTORS AMERICA, INC.
    G15709745Courtesy of KIA MOTORS AMERICA, INC.

    Information

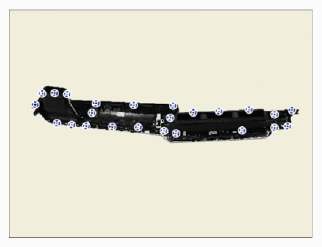

    Clip position:

    G15335371Courtesy of KIA MOTORS AMERICA, INC.

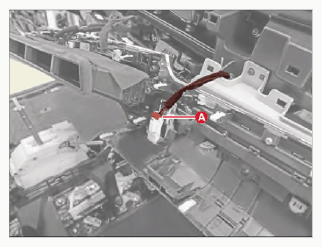

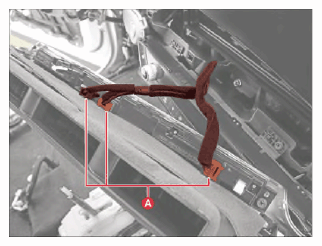

  4. Disconnect the connectors (A).
    G15709746Courtesy of KIA MOTORS AMERICA, INC.
    G15709747Courtesy of KIA MOTORS AMERICA, INC.
