Removal & Installation: Removal

  1. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX ")

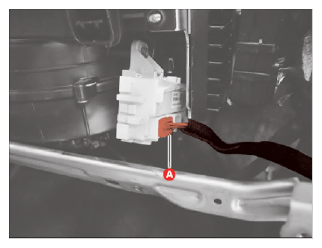

  2. Disconnect the Integrated Circuit Module (ICM) connector (A).
    G15710163Courtesy of KIA MOTORS AMERICA, INC.

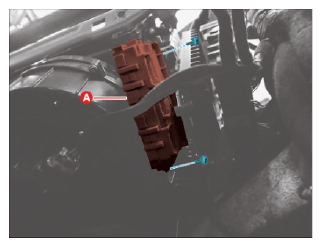

  3. Remove the ICM (A) after removing the screws.
G15710164Courtesy of KIA MOTORS AMERICA, INC.
