Removal & Installation: Removal

Remove the crash pad garnish [Driver's side].
(Refer to Lighting System - "RHEOSTAT ")

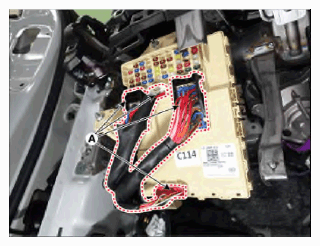

Disconnect the Integrated Central Control Unit (ICU) connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

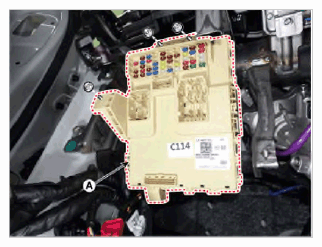

Remove the ICU (A) after removing the nuts.
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

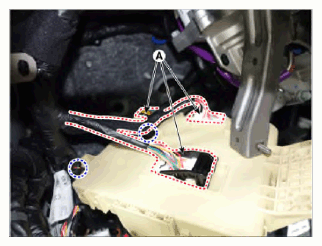

Disconnect the ICU connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
