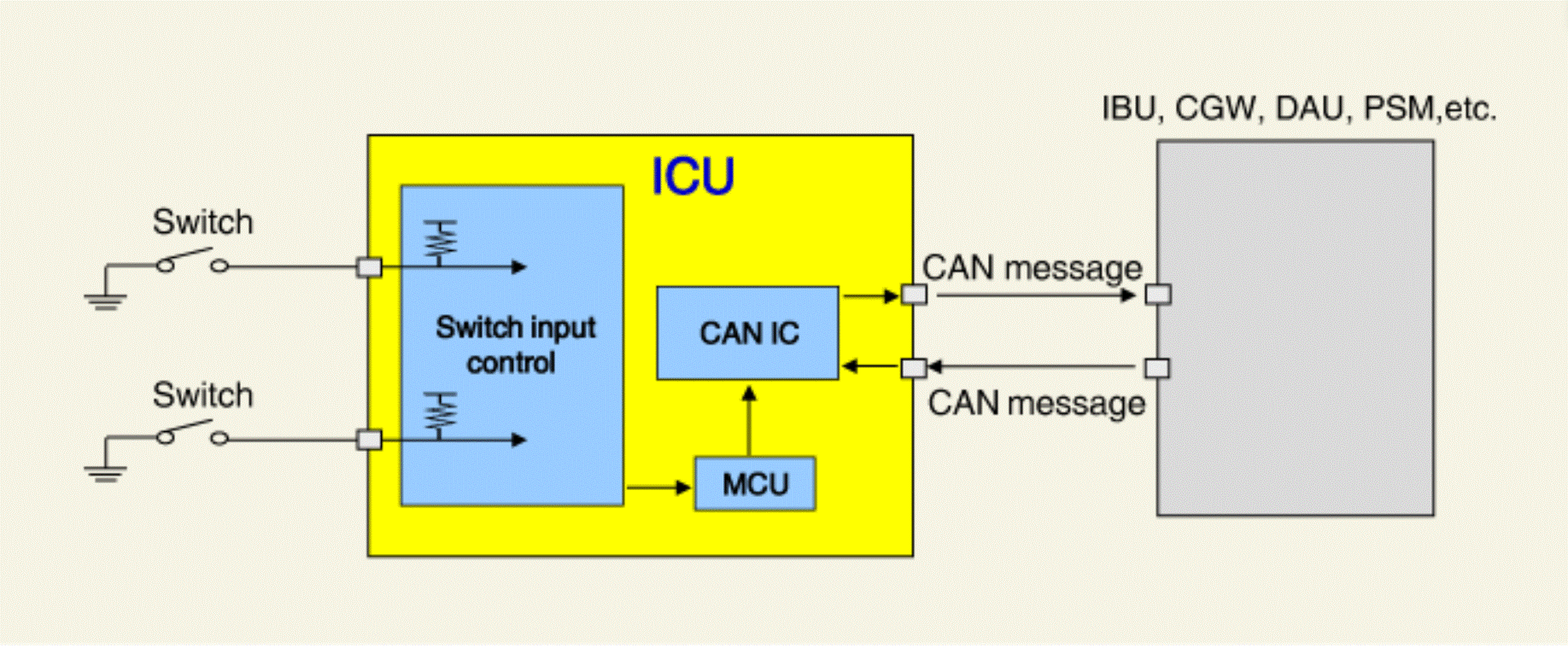

Switch Input

  1. Operating Function
    • Hazard lamp switch, seat belt switch, tailgate switch, door switch, etc.
  2. Operating Description
    1. Determined switch operation status
    2. Switch status messages are sent to other modules (IBU, DAU, PSM, etc.) via CAN communication.
G15710155Courtesy of KIA MOTORS AMERICA, INC.
