Parasitic Current Shut-Off System

  1. Operating Description
    1. If the CAN and switch inputs are absent for a long time, the power output is turn off sequentially to prevent battery discharge.
    2. If a CAN or switch input is received while the parasitic current shut-off system is operating, the system is disabled for normal operation.

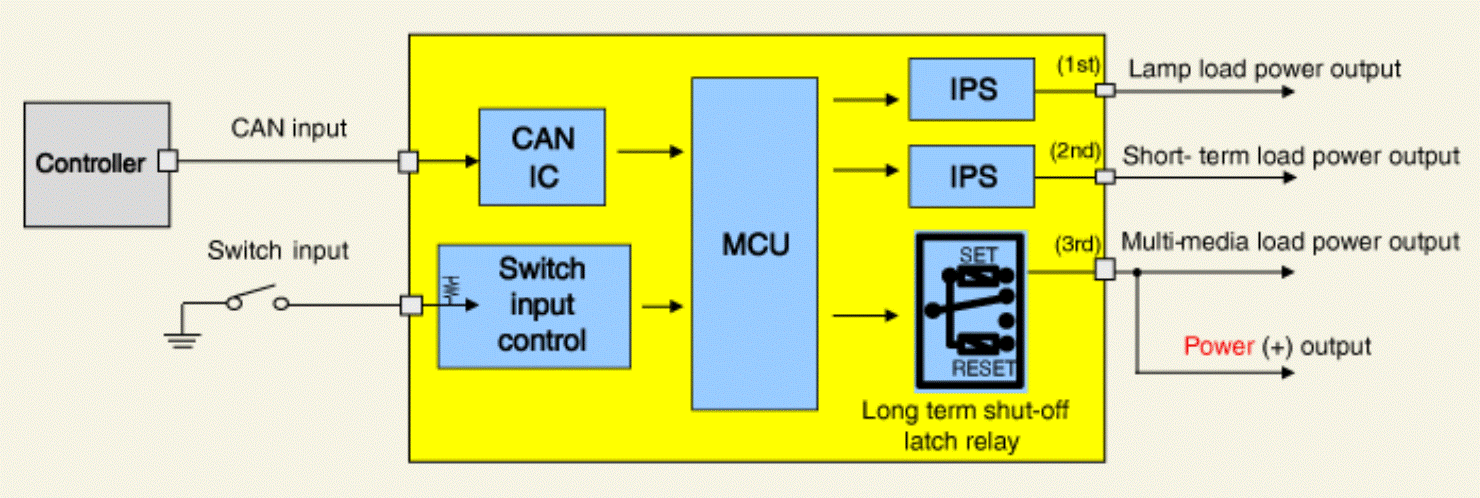

G15710159Courtesy of KIA MOTORS AMERICA, INC.
