Internal Relay Control

  1. Operating Function
    • Burglar alarm horn, tailgate, power window, etc.
  2. Operating Description

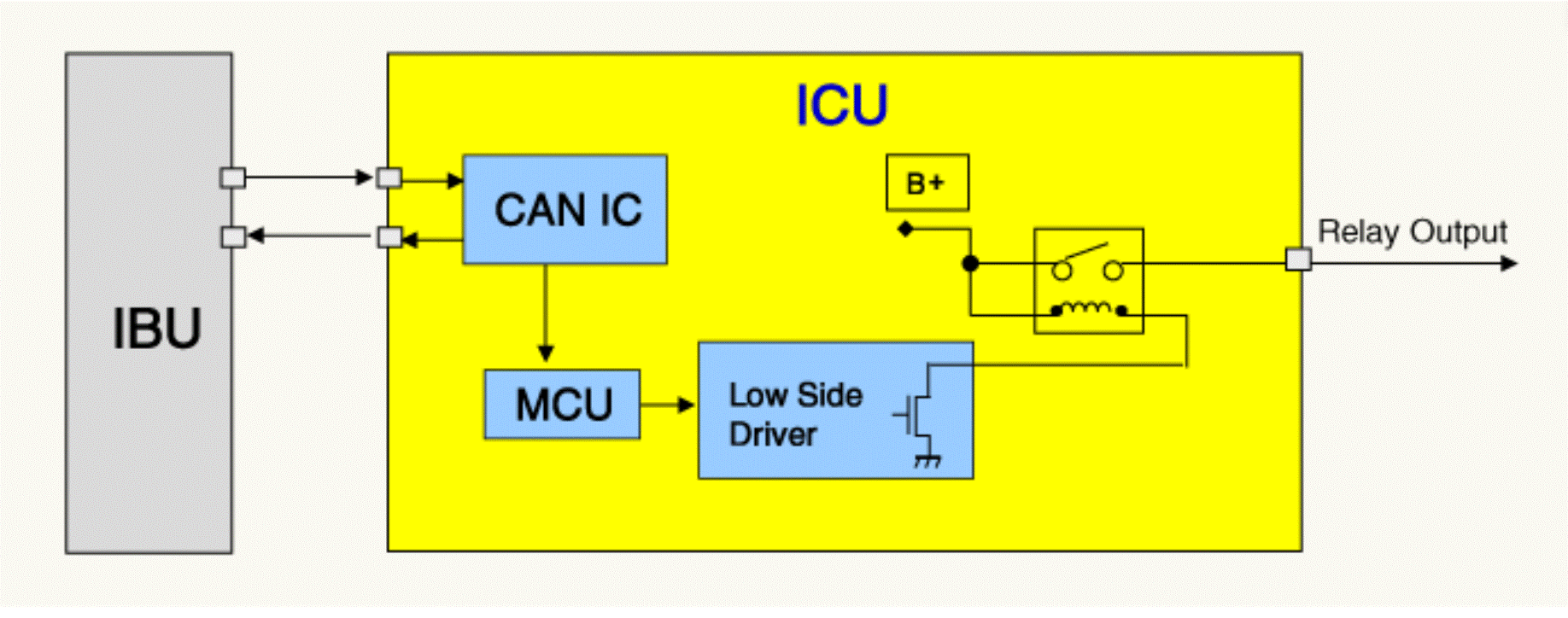

    1. Relay ON/OFF operation via CAN message of IBU
G15710157Courtesy of KIA MOTORS AMERICA, INC.
