IPS Lamp Control

1. Operating Function
   • Headlamp low/high, turn signal lamp, DRL lamp, internal/external tail lamp, stop lamp, etc.

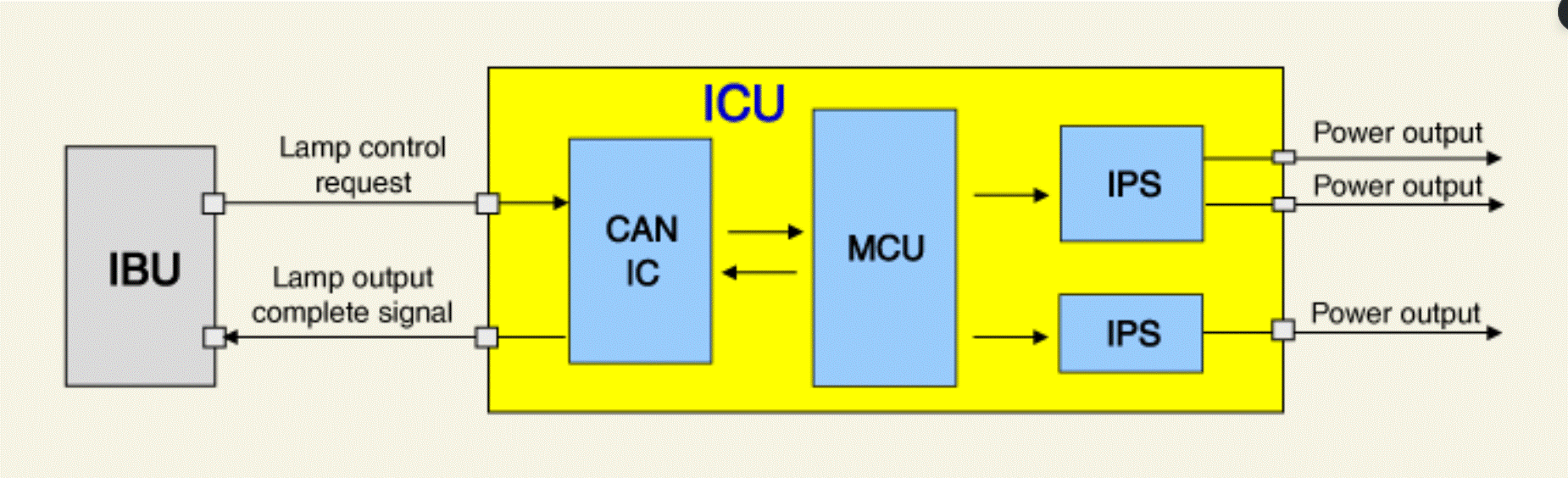

2. Operating Description
   1. Lamp ON/OFF operation via CAN message of IBU
   2. Detects current flowing through the lamp via IPS
   3. Lamp OFF when over-current detection (PCL control: Shut-off current of lamp if reference current is exceeded)

Courtesy of KIA MOTORS AMERICA, INC.

* IPS can replace fuse and relay functions by applying semi-conductors, and there is also a circuit break function to protect devices from overheating/overcurrent.
