External Relay Control

  1. Operating Function
    • Headlamp high solenoid, rear fog, rear glass defogger, etc.
  2. Operating Description

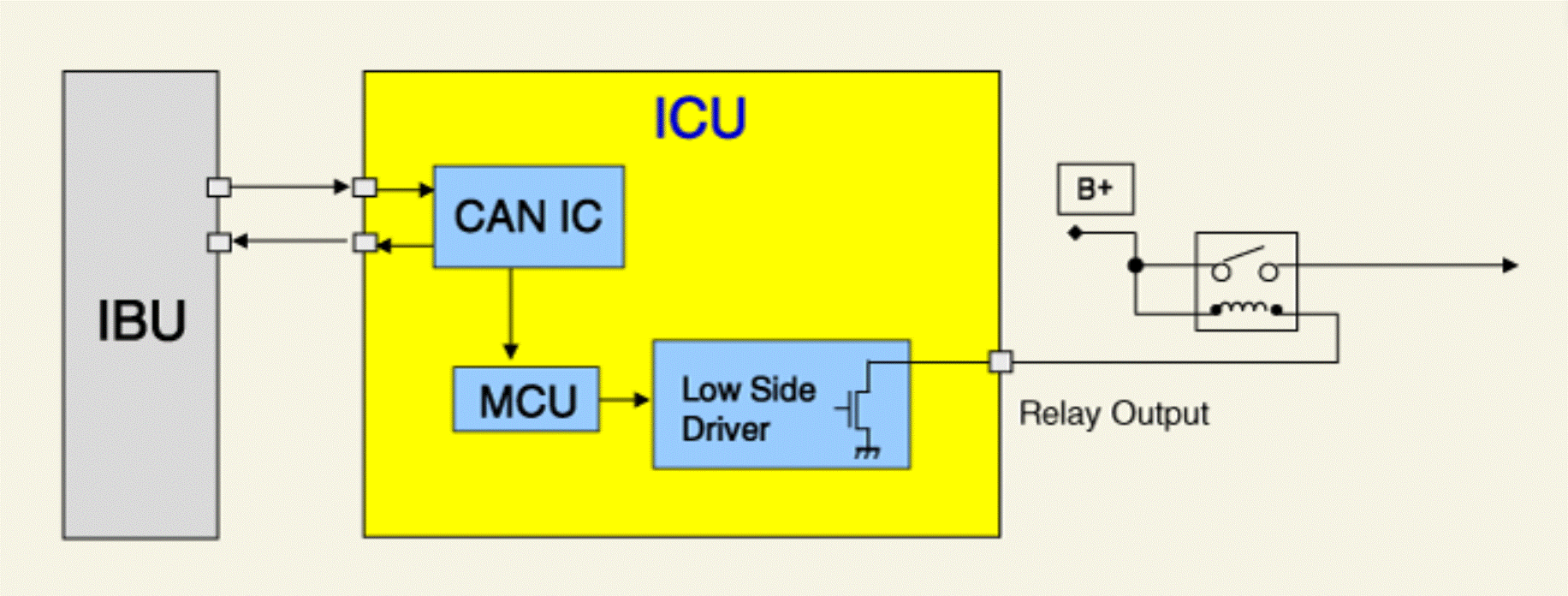

    1. Relay ON/OFF operation via CAN message of IBU
G15710158Courtesy of KIA MOTORS AMERICA, INC.
