Removal & Installation: Removal: Multi-Fuse

Disconnect the negative (-) battery terminal.

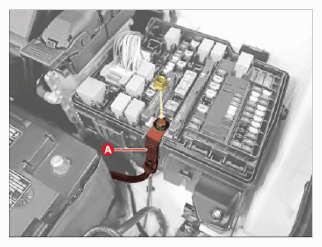

Separate the engine room junction block ground cable (A) after removing the nut.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

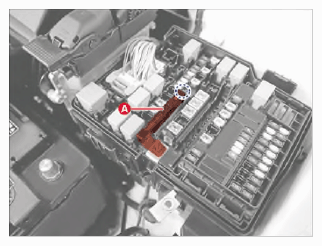

Remove the A multi-fuse (A) by releasing the hook.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

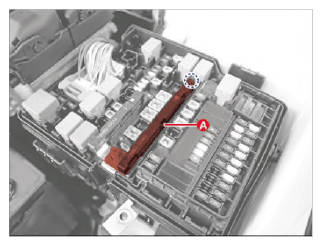

Remove the C multi-fuse (A) by releasing the hook.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
