Engine Room PCB Block

  1. Remove the multi-fuses.

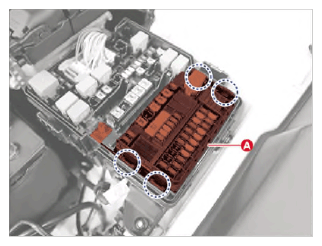

  2. Remove the engine room PCB block by releasing the hook.
    G15710146Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15344693Courtesy of KIA MOTORS AMERICA, INC.

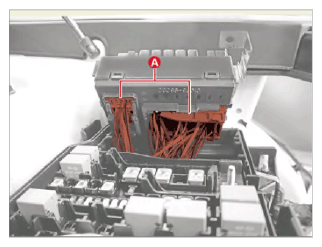

  3. Disconnect the engine room PCB block connectors (A).
G15710147Courtesy of KIA MOTORS AMERICA, INC.
