Engine Room Junction Block: Inspection: Multi-Fuse

  1. Remove the multi-fuses.
  2. Check the multi-fuses for any damage.

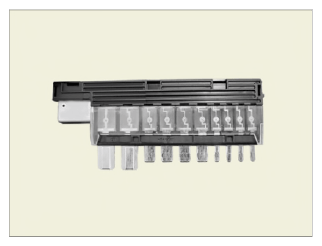

    G15710152Courtesy of KIA MOTORS AMERICA, INC.

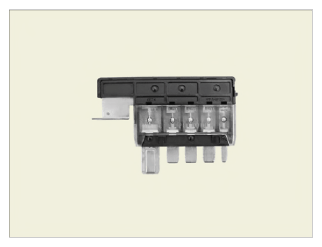

    G15710153Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Use the multi-fuse of the exact fuse capacity.
