Battery Tray

Remove the battery.
(Refer to Battery - "REMOVAL AND INSTALLATION ")

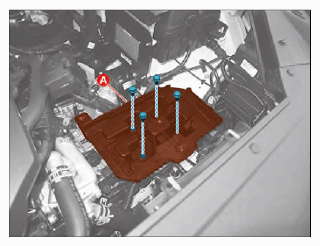

Remove the battery tray (A) after removing the bolts.
Tightening torque:

7.8 - 10.9 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
