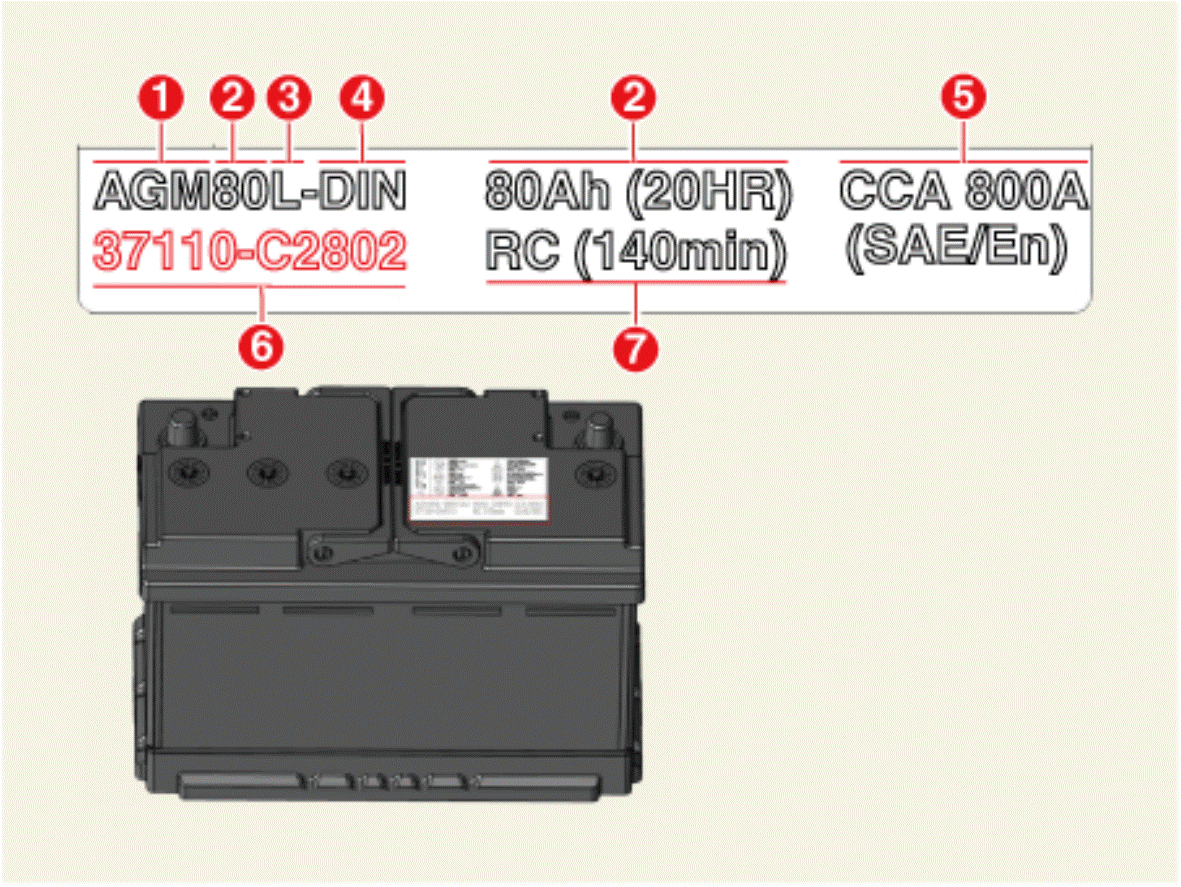

Battery Label Information
- Battery specifications
- AGM: Absorbent Glass Material
- CMF: Closed Maintenance Free
- MF: Maintenance Free
- Battery capacity (20 Ah)
- Terminal location
- L: battery positive (+) terminal on the left.
- R: battery positive (+) terminal on the right.
- Battery type
- BCI (Battery Council International): Intruding terminal
- DIN (Deutsche Industric Normen): Recessed terminal
- Cold Cranking Ampere (CCA)
Information
CCA: The amount of current that can be supplied for 30 seconds while maintaining a voltage of more than 7.2 V at -18°C (-0.4°F).
- Part number
- Reserve Capacity (RC)
Information
RC: The amount of time that can be supplied 25 A while maintaining the minimum voltage of 10.5 V at 26.7°C (80°F).
