Removal & Installation: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the rear wheel and tire.

    (Refer to Suspension System - "WHEEL ")

  3. Remove the rear brake caliper.

    (Refer to Brake System - "REAR DISC BRAKE ")

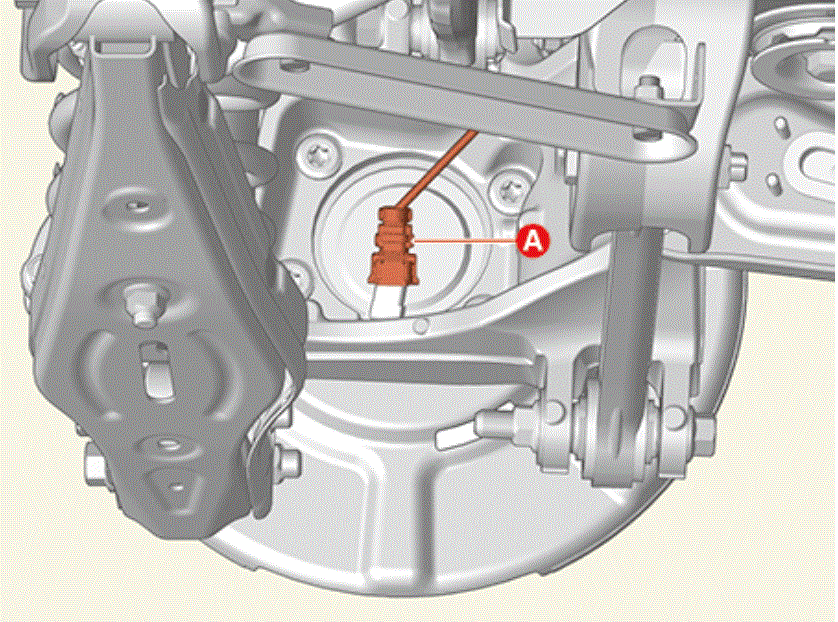

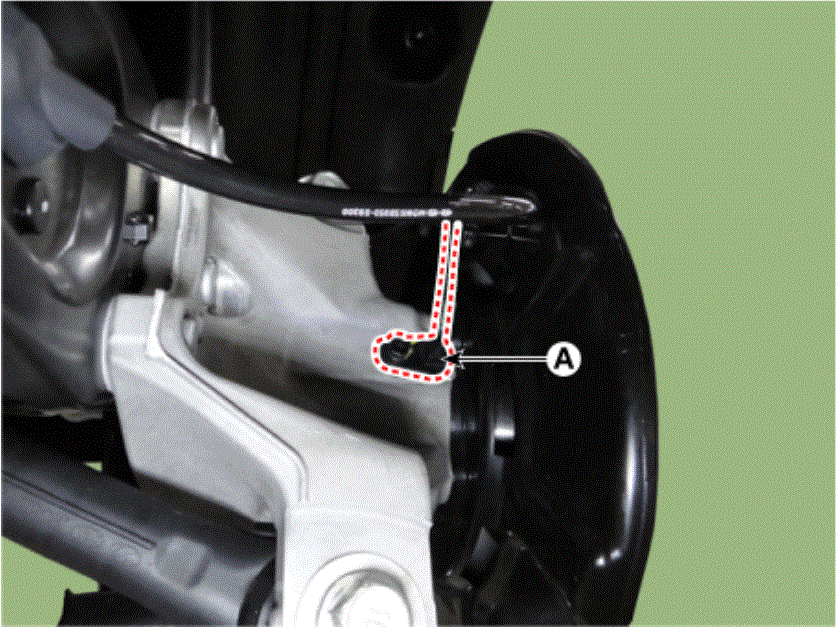

  4. Disconnect the rear wheel speed sensor (A).

    (2WD)

    G15708842Courtesy of KIA MOTORS AMERICA, INC.

    (4WD)

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G15708843Courtesy of KIA MOTORS AMERICA, INC.

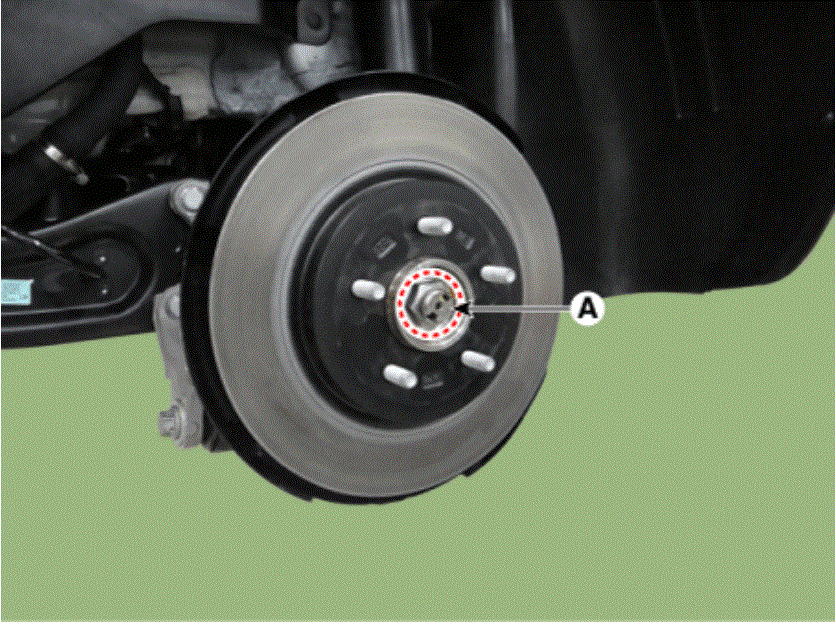

  5. Remove the caulking nut (A) from the rear axle.

    Tightening torque:

    294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb.ft)

    G15708844Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.
    G15708845Courtesy of KIA MOTORS AMERICA, INC.
    G15708846Courtesy of KIA MOTORS AMERICA, INC.

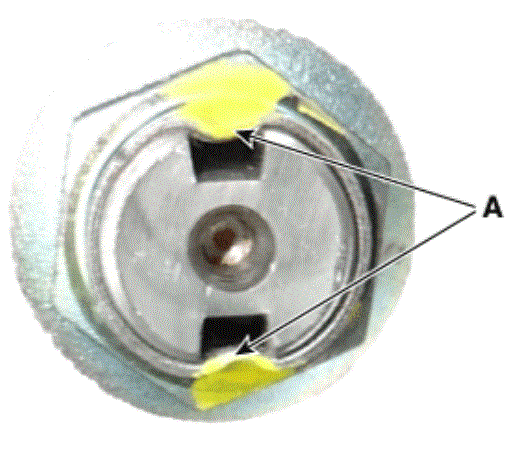

    • Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
    • If there are two key seats, perform on all two seats.

      Caulking depth (A):  1.5 mm (0.0591 in)

    G15708847Courtesy of KIA MOTORS AMERICA, INC.

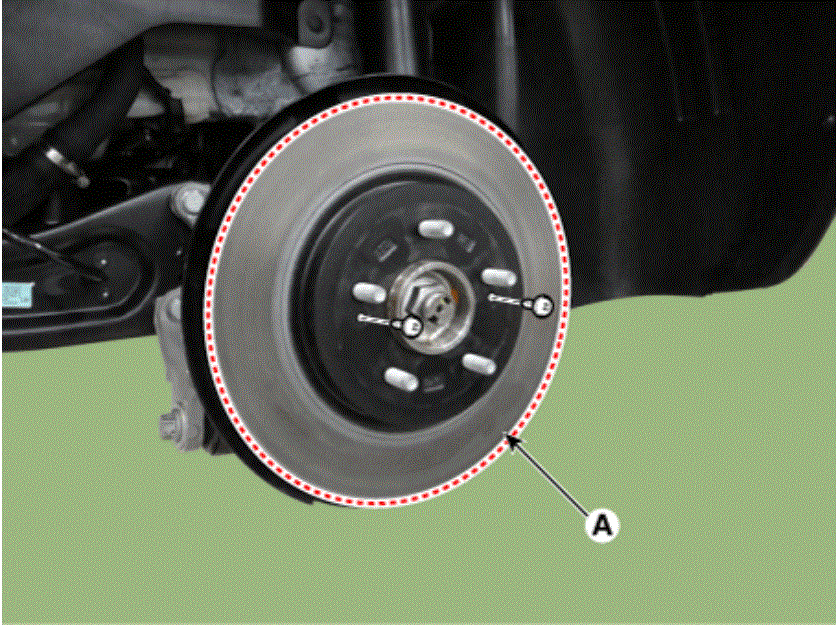

  6. Loosen the screws and then remove the rear brake disc (A).

    Tightening torque:

    4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

    G15708848Courtesy of KIA MOTORS AMERICA, INC.

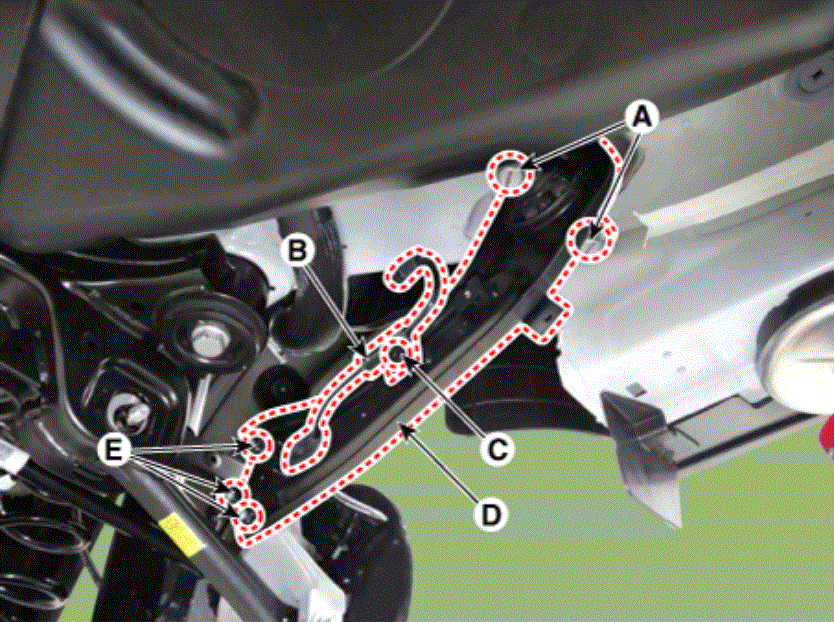

  7. Remove the trailing arm.
    1. Loosen the trailing arm bolts (A) from the body.

      Tightening torque:

      98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    2. Disconnect the rear wheel speed sensor wiring (B) by loosening the bolt (C).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    3. Remove the trailing arm (D) by loosening the nuts (E).

      Tightening torque:

      98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G15708849Courtesy of KIA MOTORS AMERICA, INC.

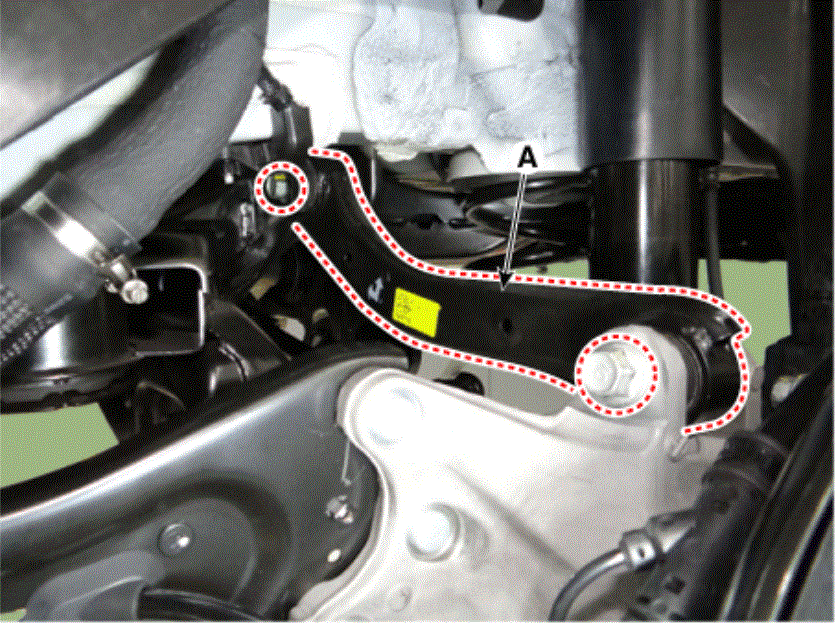

  8. Detach the rear upper arm (A) from the rear carrier.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G15708850Courtesy of KIA MOTORS AMERICA, INC.

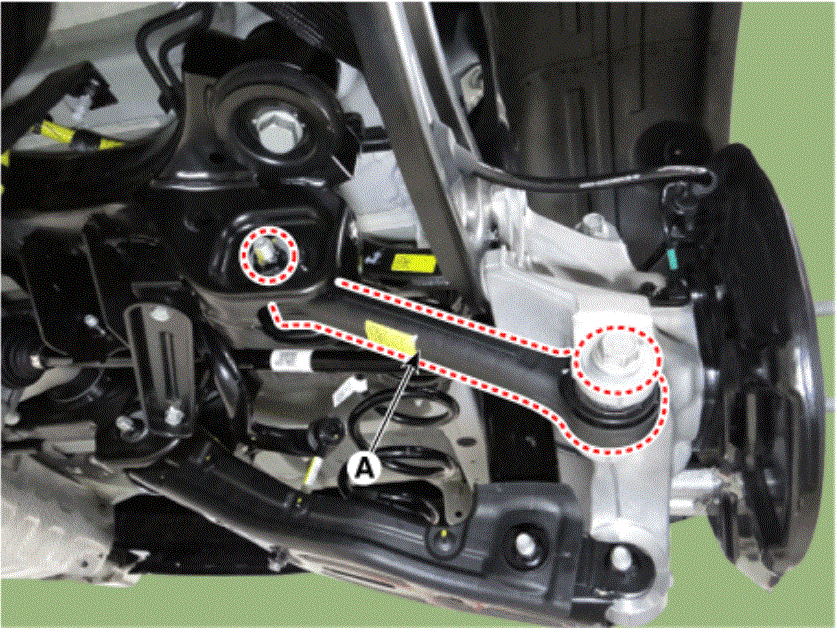

  9. Detach the rear assist arm (A) from the rear carrier.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb.ft)

    G15708851Courtesy of KIA MOTORS AMERICA, INC.

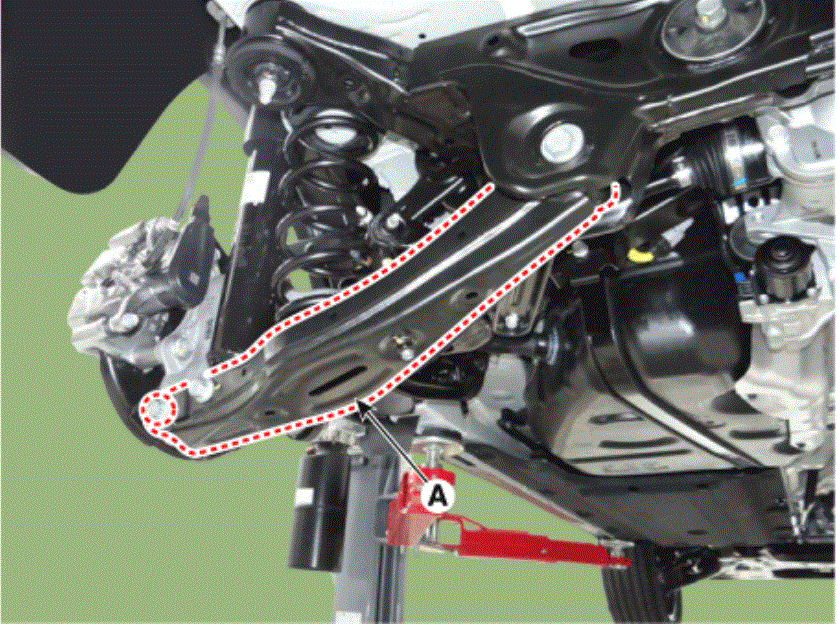

  10. Detach the rear lower arm (A) from the rear carrier.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb.ft)

    G15708852Courtesy of KIA MOTORS AMERICA, INC.

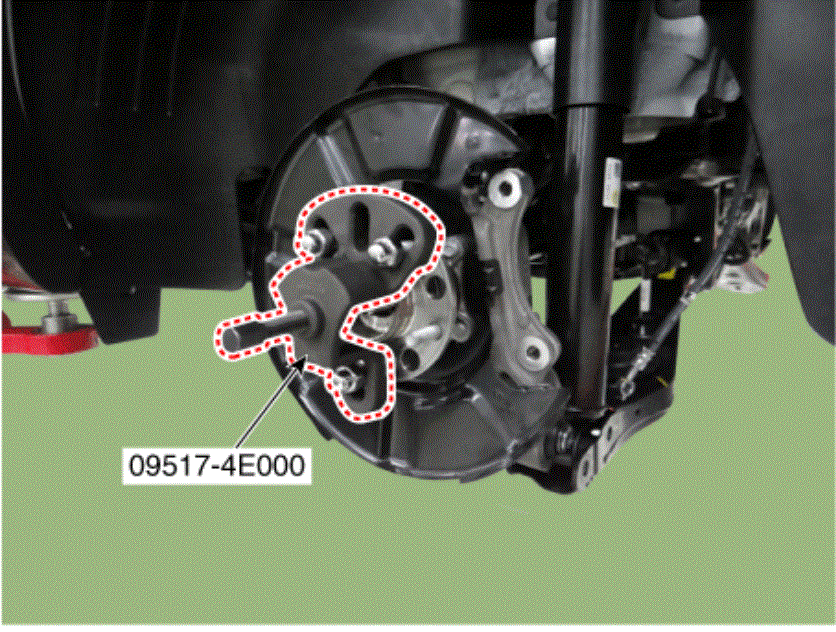

  11. Using a SST (09517-4E000), disconnect the driveshaft from the axle hub. [4WD only]
    G15708853Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not pull or twist excessively to remove the axle when the drive shaft is disassembled.

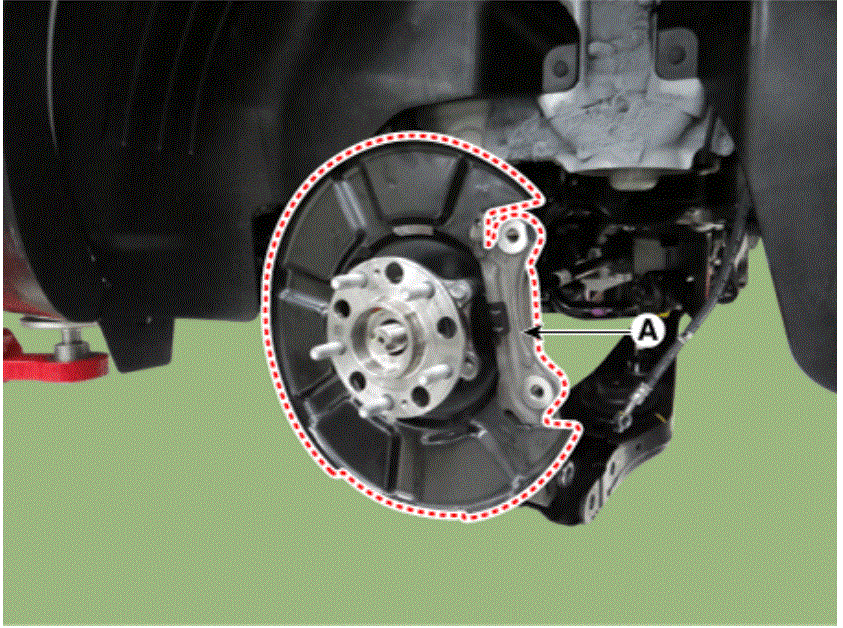

  12. Remove the rear axle assembly (A).
G15708854Courtesy of KIA MOTORS AMERICA, INC.
