Disassembly & Reassembly: Disassembly

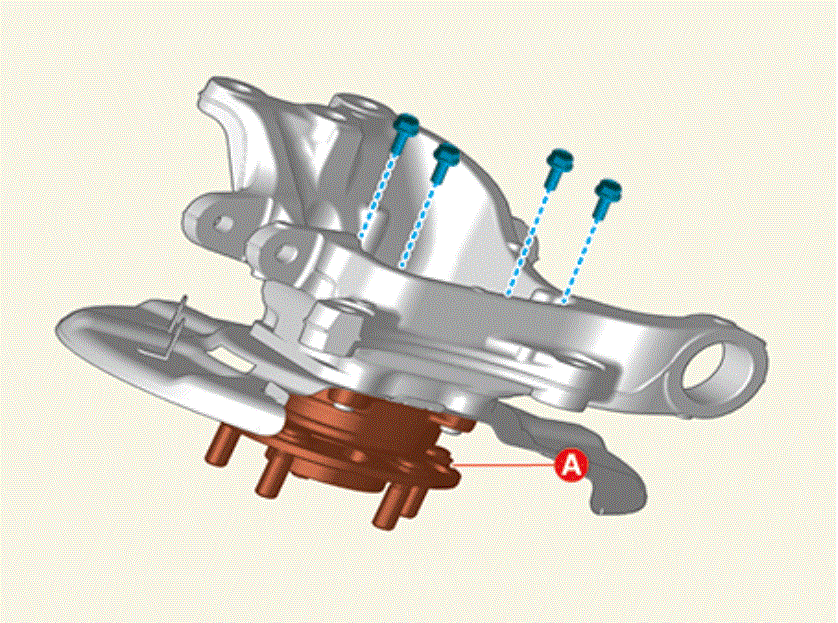

  1. Remove the rear hub assembly (A) after removing the bolts.

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G15708855Courtesy of KIA MOTORS AMERICA, INC.

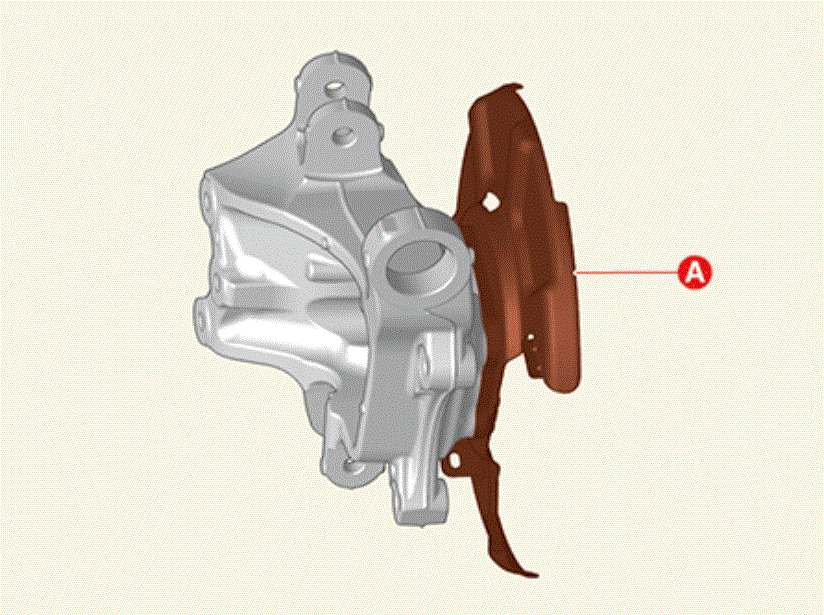

  2. Remove the dust cover (A) from the rear carrier.
G15708856Courtesy of KIA MOTORS AMERICA, INC.
