Propeller Shaft Runout

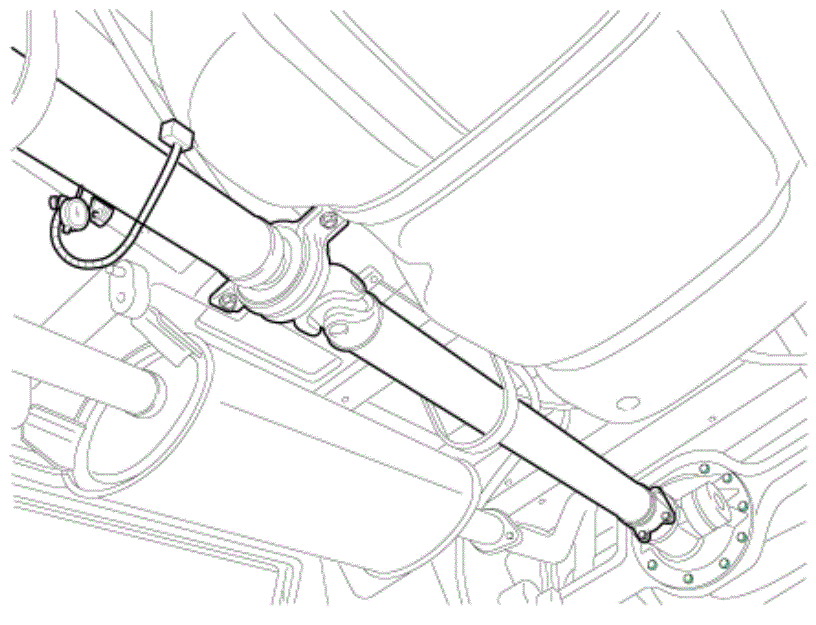

  1. Turn the propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.

    Front Propeller Shaft Runout:  0.3 mm (0.0118 in.)

    G15708874Courtesy of KIA MOTORS AMERICA, INC.
  2. Replace the propeller shaft if either of the propeller shaft runouts exceeds the specified value.
