Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Drivelines & Axles >> Driveshaft & Universal Joints >> Propeller Shaft Assembly >> Components And Components Location >> Components

Components And Components Location: Components

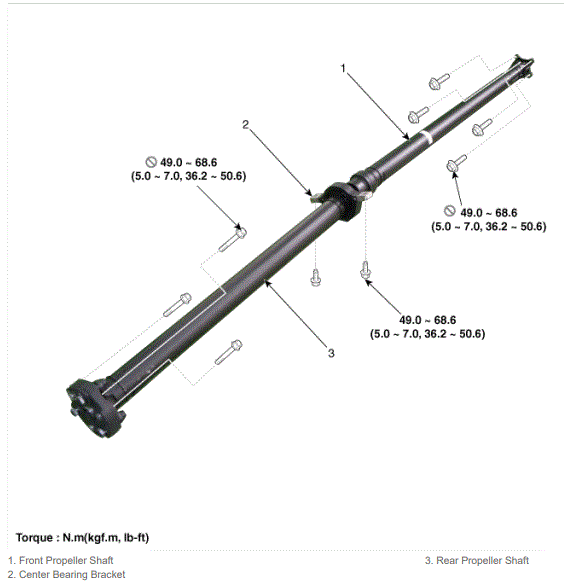

Fig 1: Propeller Shaft Assembly Components Location With Torque Specification

G15708870

Courtesy of KIA MOTORS AMERICA, INC.
