Bearing Bracket & Shaft Assembly

  1. Remove the front drive shaft.

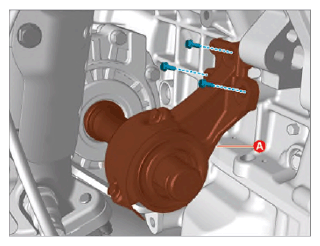

  2. Remove the bearing bracket & shaft assembly (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

G15708816Courtesy of KIA MOTORS AMERICA, INC.
