Circuit Inspection

G15718962Courtesy of KIA MOTORS AMERICA, INC.
Inspection Item Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
Power inspection (EPB actuator RH ↔ Chassis ground)
  1. Connect the EPB actuator RH connector.
  2. Ignition "ON".
 EPB actuator RH connector 2 (motor +) Chassis ground - Approx. 0.8 to 12V
EPB actuator RH connector 1 (motor-) Chassis ground - Approx. 0.8 to 12V
Power inspection (EPB actuator RH ↔ Chassis ground)
  1. Ignition "ON".
  2. Disconnect the connector(s) from EPB actuator RH.
 EPB actuator RH connector 2 (motor +) Chassis ground - Approx. 0.11V
EPB actuator RH connector 1 (motor-) Chassis ground - Approx. 0.11V
Resistance inspection (EPB actuator RH)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from EPB actuator RH.
 EPB actuator RH (component side) 2 (motor +) EPB actuator RH (component side) 1 (motor -) Approx. 0.2Ω
Oscilloscope (EPB actuator RH)
  1. Ignition "ON".
 EPB actuator RH connector 2 (motor +) Chassis ground - Fig.1 to 3
EPB actuator RH connector 1 (motor -) Chassis ground -

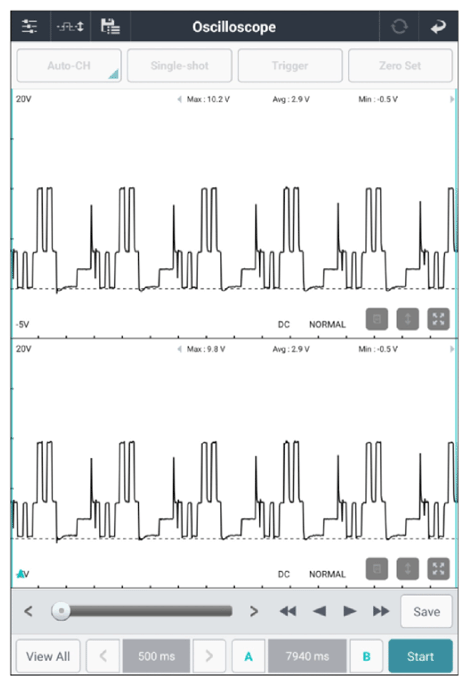

G15718963Courtesy of KIA MOTORS AMERICA, INC.

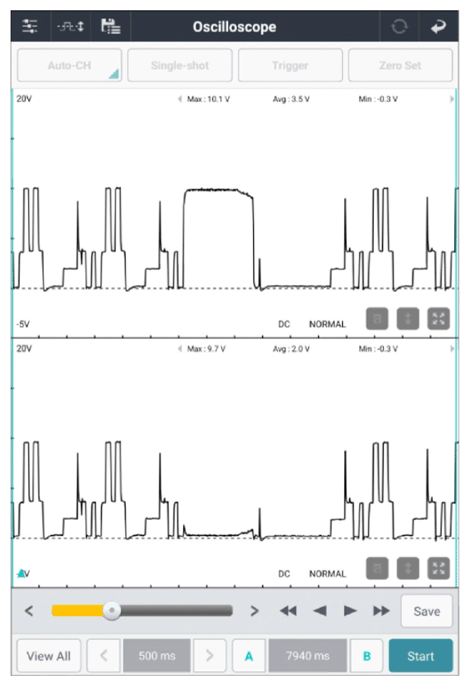

G15718964Courtesy of KIA MOTORS AMERICA, INC.

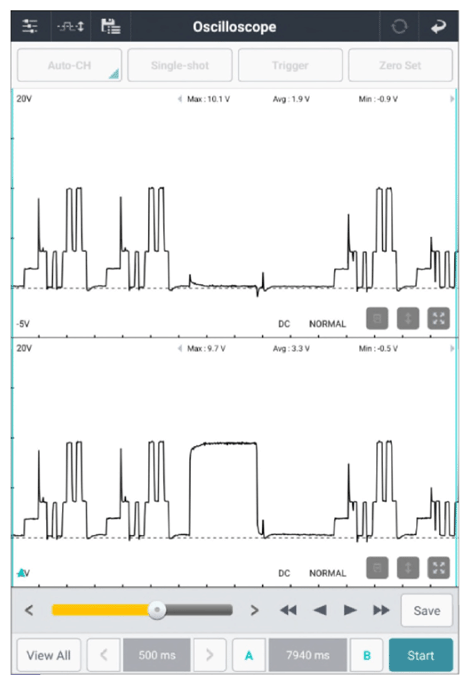

G15718965Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
