Circuit Inspection

G15718780Courtesy of KIA MOTORS AMERICA, INC.
Inspection Item Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
Power inspection (EPB actuator LH ↔ Chassis ground)
  1. Connect the EPB actuator LH connector.
  2. Ignition "ON".
 EPB actuator LH connector 2 (motor +) Chassis ground - Approx. 0.8 to 12V
EPB actuator LH connector 1 (motor-) Chassis ground - Approx. 0.8 to 12V
Power inspection (EPB actuator LH ↔ Chassis ground)
  1. Ignition "ON".
  2. Disconnect the connector(s) from EPB actuator LH.
 EPB actuator LH connector 2 (motor +) Chassis ground - Approx. 0.11V
EPB actuator LH connector 1 (motor-) Chassis ground - Approx. 0.11V
Resistance inspection (EPB actuator LH)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from EPB actuator LH.
 EPB actuator LH (component side) 2 (motor +) EPB actuator LH (component side) 1 (motor -) Approx. 0.2Ω
Oscilloscope (EPB actuator LH)
  1. Ignition "ON".
 EPB actuator LH connector 2 (motor +) Chassis ground - Fig.1 to 3
EPB actuator LH connector 1 (motor -) Chassis ground -

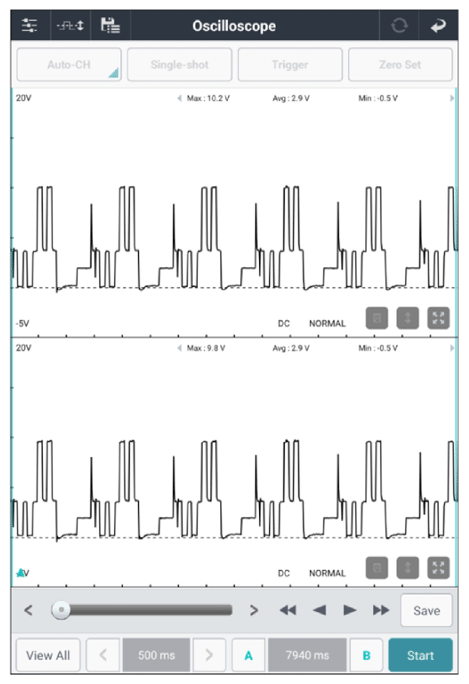

G15718781Courtesy of KIA MOTORS AMERICA, INC.

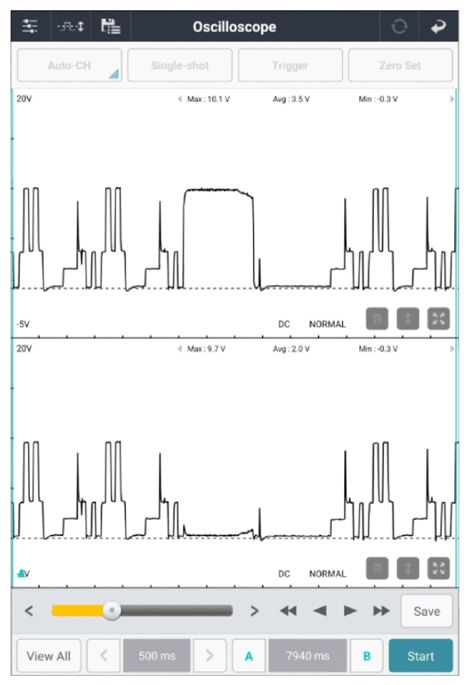

G15718782Courtesy of KIA MOTORS AMERICA, INC.

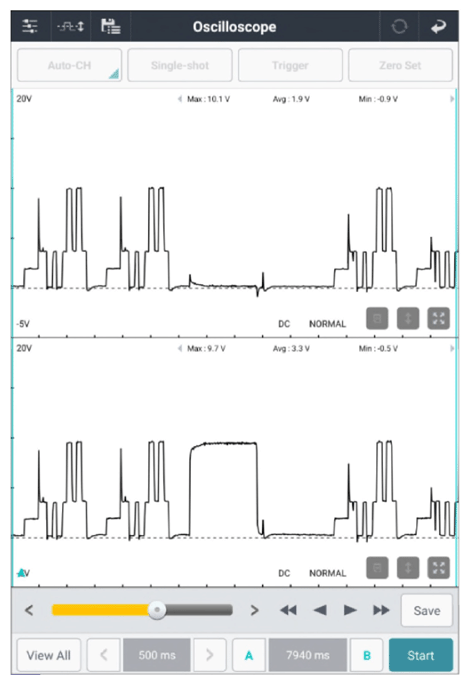

G15718783Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
