ESC (ESP) Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "ESC Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

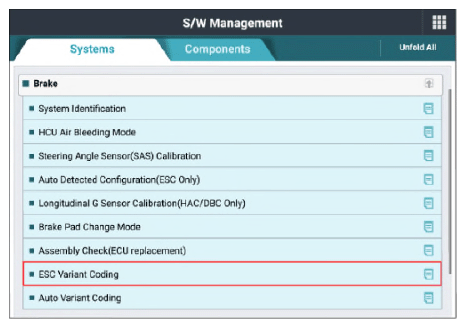

G15718644Courtesy of KIA MOTORS AMERICA, INC.

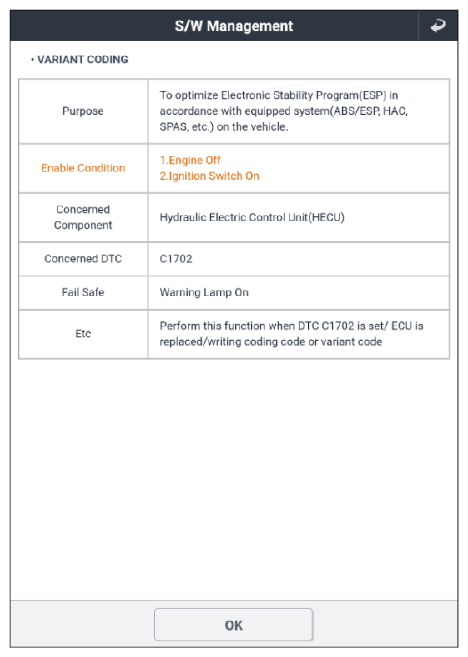

G15718645Courtesy of KIA MOTORS AMERICA, INC.

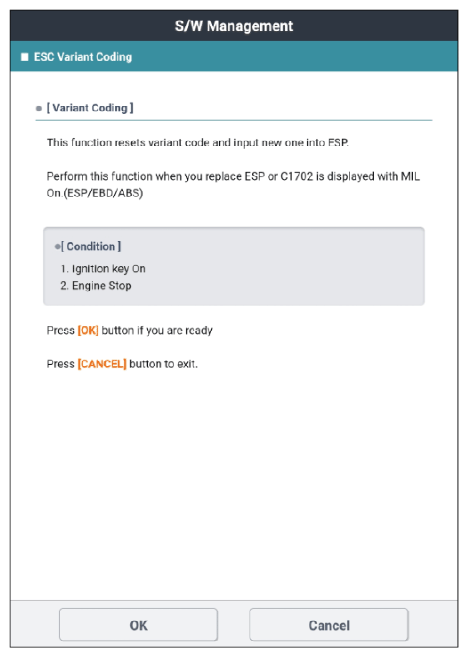

G15718646Courtesy of KIA MOTORS AMERICA, INC.

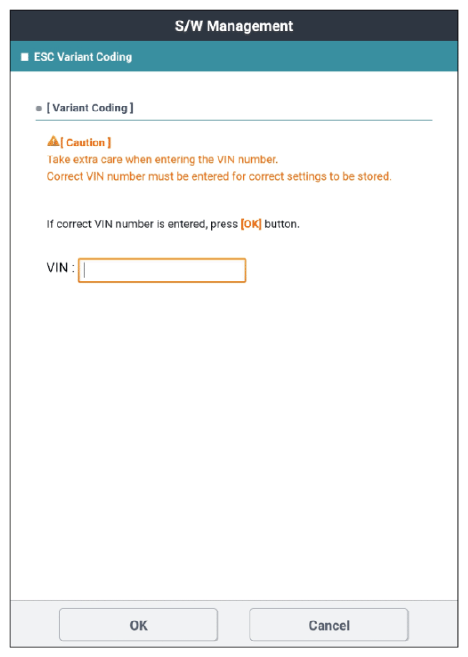

G15718647Courtesy of KIA MOTORS AMERICA, INC.

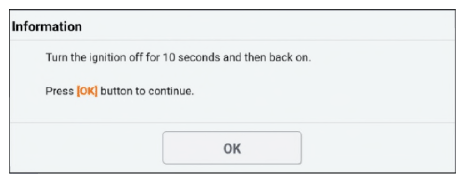

G15718648Courtesy of KIA MOTORS AMERICA, INC.
