Auto Detected Configuration (ESC (ESP) Only)

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Auto Detected Configuration (ESC (ESP) Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

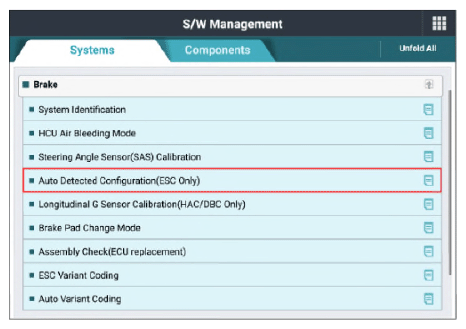

G15718649Courtesy of KIA MOTORS AMERICA, INC.

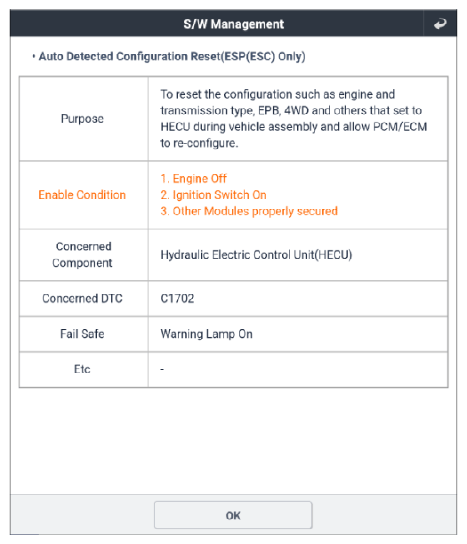

G15718650Courtesy of KIA MOTORS AMERICA, INC.

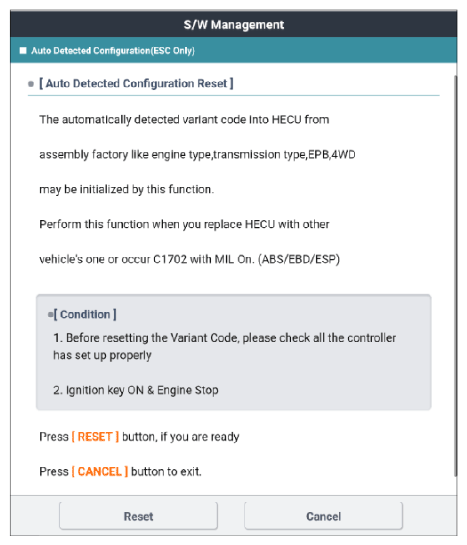

G15718651Courtesy of KIA MOTORS AMERICA, INC.
G15718652Courtesy of KIA MOTORS AMERICA, INC.
