Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Oscilloscope (EPB switch) |
|

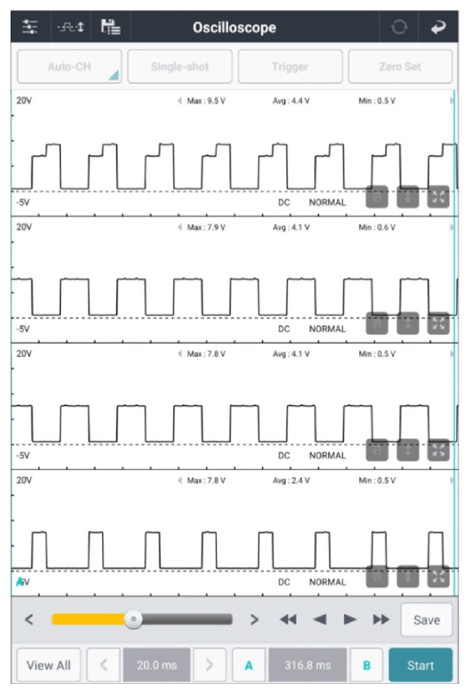

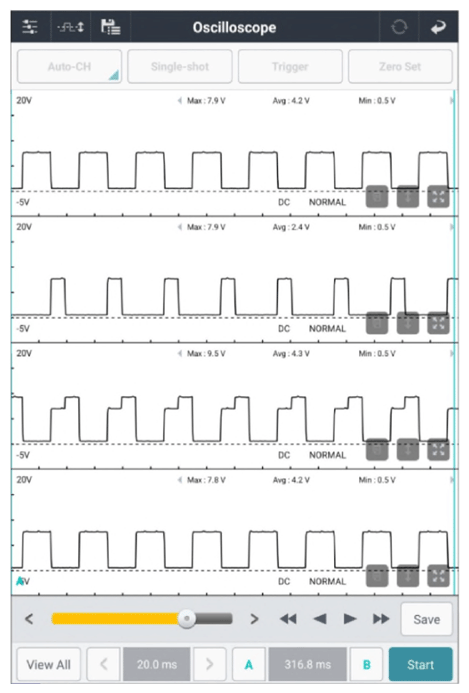

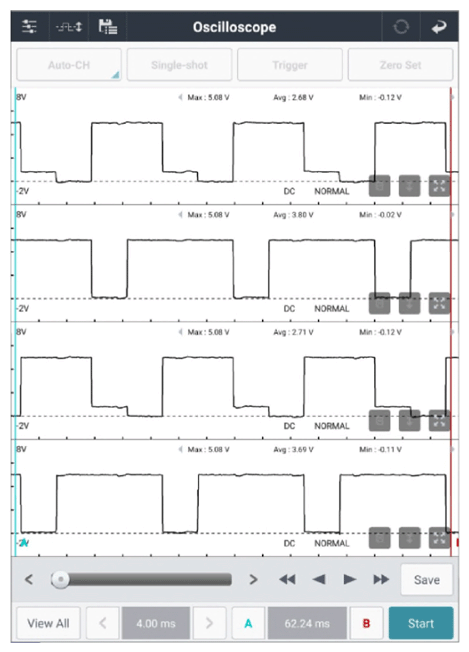

EPB switch connector | 13 (SW1) | EPB switch connector | 14 (SW2) | Fig.1 to 3 |
| EPB switch connector | 15 (SW3) | EPB switch connector | 16 (SW4) | |||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
