Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs/ESC Diagnosis (1 Of 4) >> DTC C1286-02: Yaw Rate & G Sensor Fail-Replace SRSCM >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

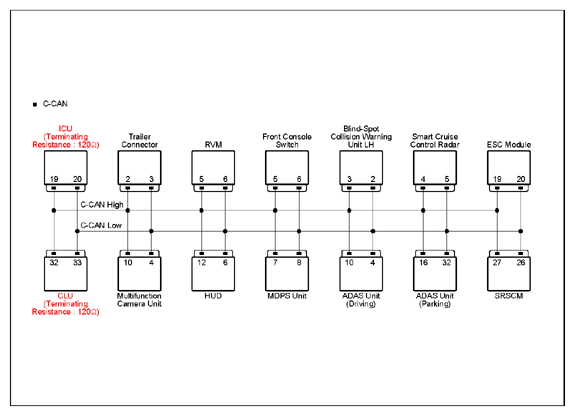

G15718378Courtesy of KIA MOTORS AMERICA, INC.
