Longitudinal G Sensor Calibration (HAC/DBC Only)

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.	Fig.1 to 5

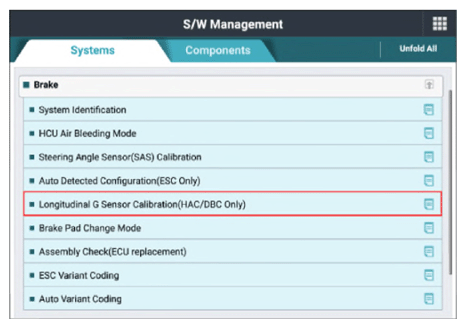

G15718370

Courtesy of KIA MOTORS AMERICA, INC.

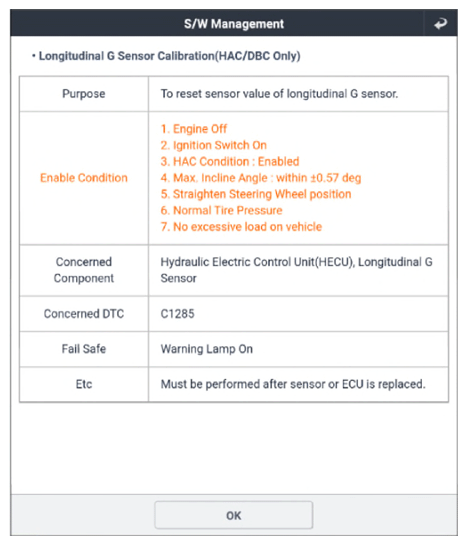

G15718371

Courtesy of KIA MOTORS AMERICA, INC.

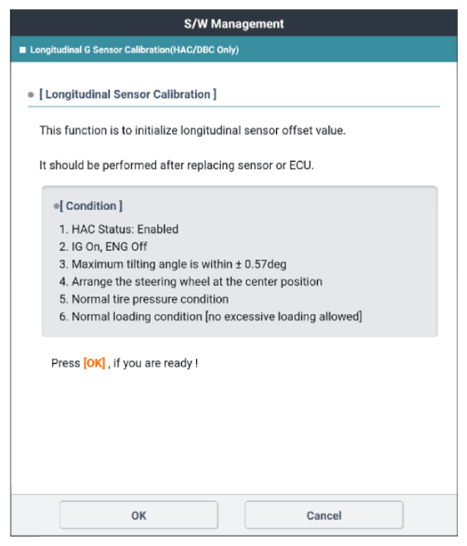

G15718372

Courtesy of KIA MOTORS AMERICA, INC.

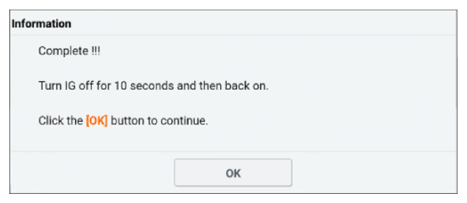

G15718373

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors and connections for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace SRSCM and then Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing SRSCM, perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" procedure.
