Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" of MDPS system in "Vehicle S/W management" with KDS.
 Fig.1 to 4

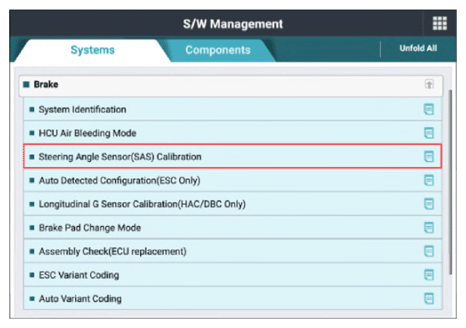

G15718352Courtesy of KIA MOTORS AMERICA, INC.

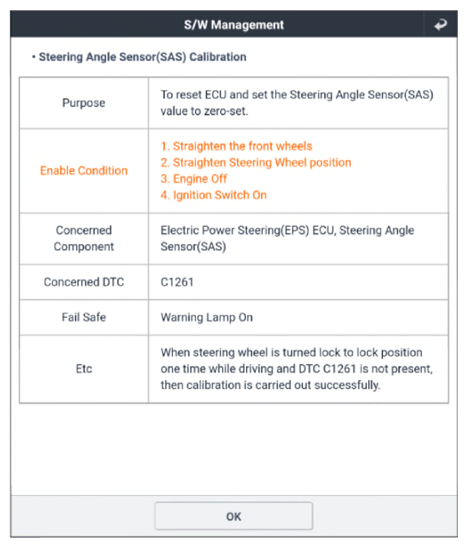

G15718353Courtesy of KIA MOTORS AMERICA, INC.

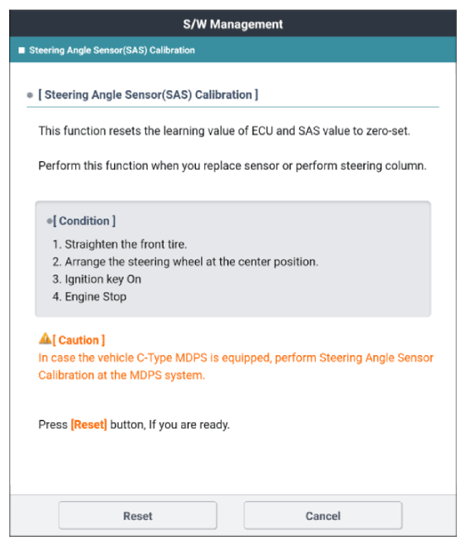

G15718354Courtesy of KIA MOTORS AMERICA, INC.
G15718355Courtesy of KIA MOTORS AMERICA, INC.
