Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" of MDPS system in "Vehicle S/W management" with KDS.
 Fig.1 to 4

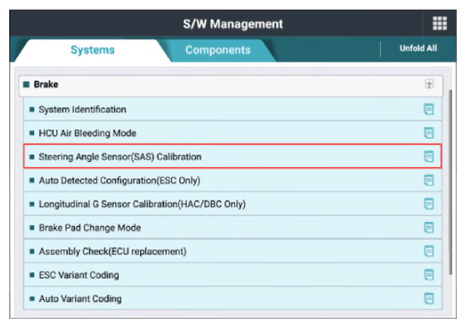

G15718346Courtesy of KIA MOTORS AMERICA, INC.

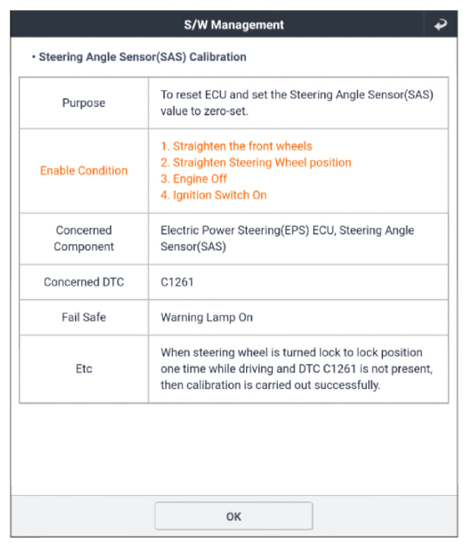

G15718347Courtesy of KIA MOTORS AMERICA, INC.

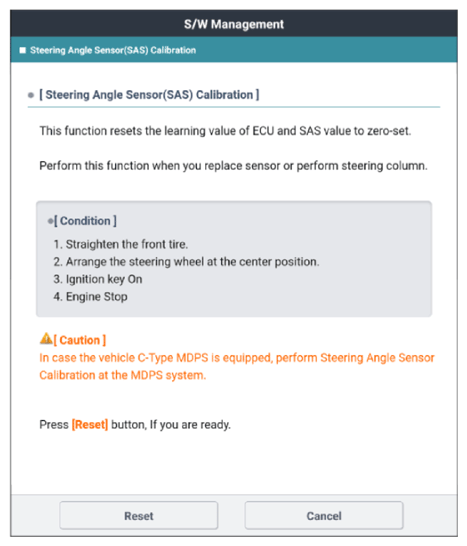

G15718348Courtesy of KIA MOTORS AMERICA, INC.
G15718349Courtesy of KIA MOTORS AMERICA, INC.
