Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" of MDPS system in "Vehicle S/W management" with KDS.
 Fig.1 to 4

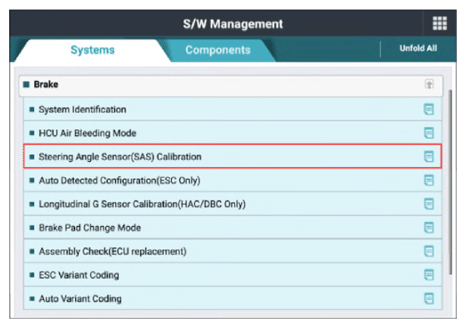

G15718340Courtesy of KIA MOTORS AMERICA, INC.

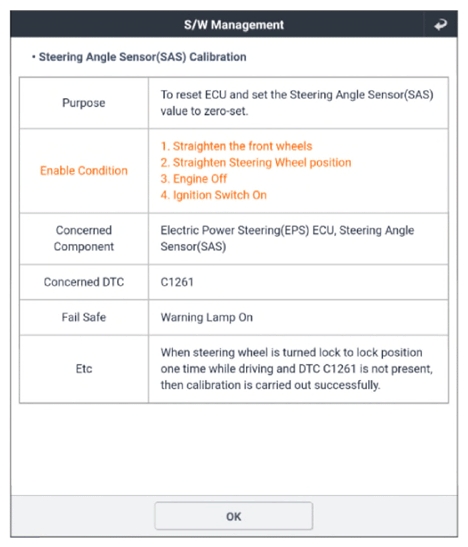

G15718341Courtesy of KIA MOTORS AMERICA, INC.

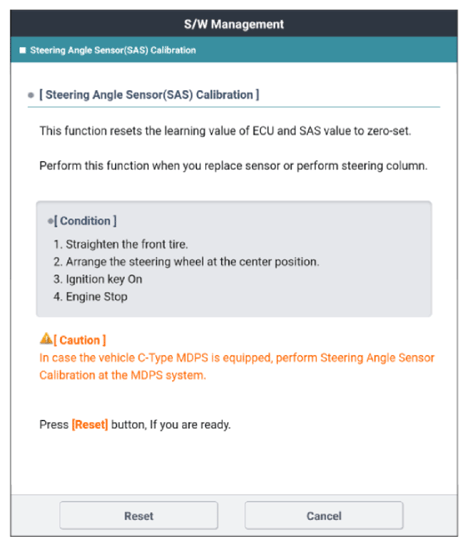

G15718342Courtesy of KIA MOTORS AMERICA, INC.
G15718343Courtesy of KIA MOTORS AMERICA, INC.
