HCU Air Bleeding Mode

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "HCU Air Bleeding Mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

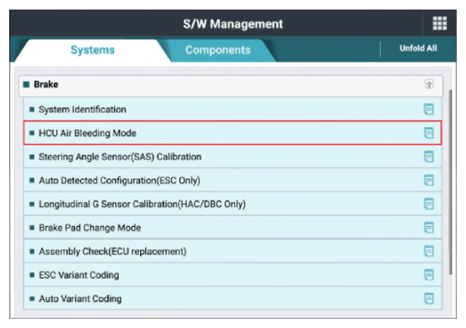

G15718324Courtesy of KIA MOTORS AMERICA, INC.

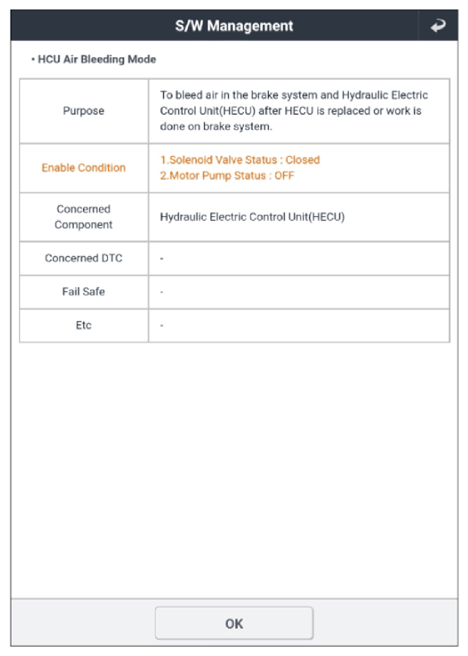

G15718325Courtesy of KIA MOTORS AMERICA, INC.

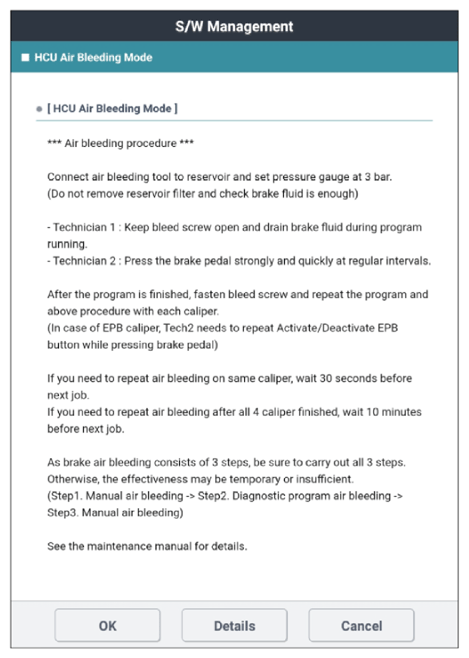

G15718326Courtesy of KIA MOTORS AMERICA, INC.

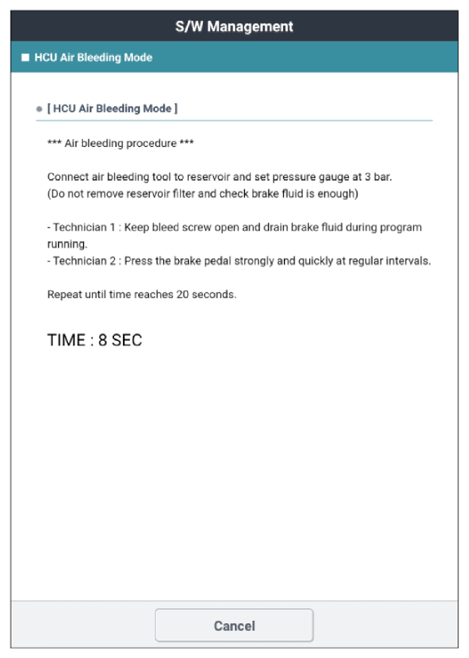

G15718327Courtesy of KIA MOTORS AMERICA, INC.
G15718328Courtesy of KIA MOTORS AMERICA, INC.
