HCU Air Bleeding Mode

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "HCU Air Bleeding Mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

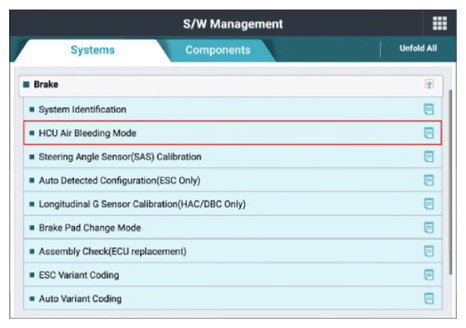

G15718314Courtesy of KIA MOTORS AMERICA, INC.

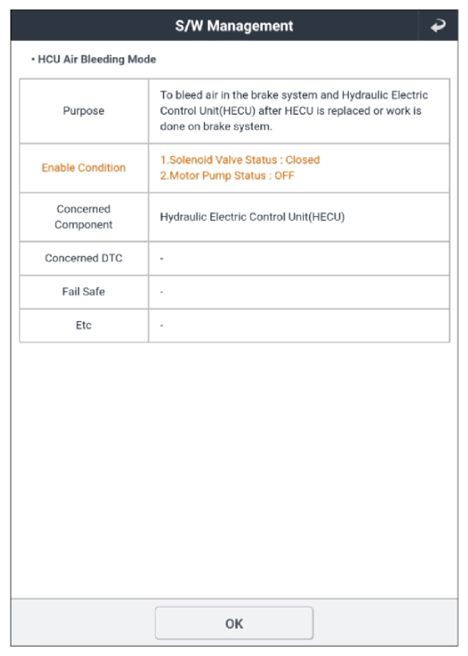

G15718315Courtesy of KIA MOTORS AMERICA, INC.

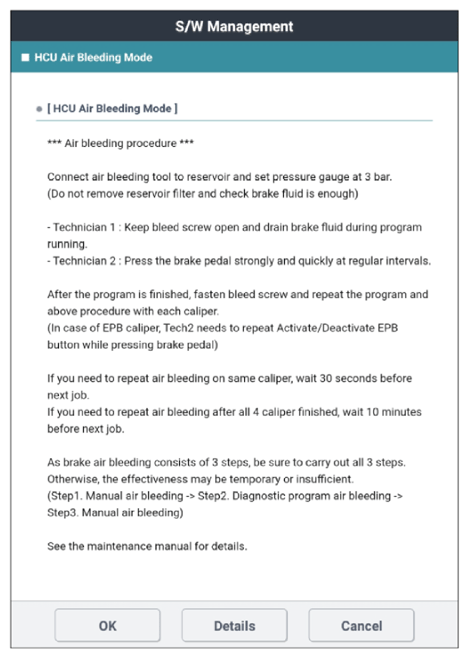

G15718316Courtesy of KIA MOTORS AMERICA, INC.

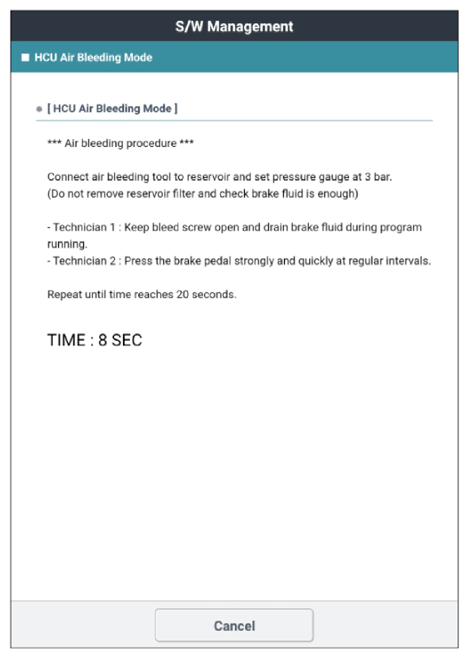

G15718317Courtesy of KIA MOTORS AMERICA, INC.
G15718318Courtesy of KIA MOTORS AMERICA, INC.
