Circuit Inspection

G15718294Courtesy of KIA MOTORS AMERICA, INC.
G15718295Courtesy of KIA MOTORS AMERICA, INC.
Inspection Item Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
Short in circuit inspection (WSS ↔ Chassis ground)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from WSS.
 WSS RR connector 2 (signal) Chassis ground - ∞ (infinity)Ω
WSS RR extension harness connector (4WD) 1 (signal) Chassis ground - ∞ (infinity)Ω
Open in circuit inspection (WSS ↔ HECU)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from WSS, HECU.
 WSS RR connector 2 (signal) HECU connector 42 (signal) Approx. below 1Ω
WSS RR extension harness connector (4WD) 1 (signal) HECU connector 42 (signal) Approx. below 1Ω
WSS RR connector 1 (power) HECU connector 26 (power) Approx. below 1Ω
WSS RR extension harness connector (4WD) 2 (power) HECU connector 26 (power) Approx. below 1Ω
Voltage inspection (WSS ↔ Chassis ground)
  1. Connect the connector(s) from WSS.
  2. Ignition "ON".
 WSS RR connector 2 (signal) Chassis ground - 0V
WSS RR extension harness connector (4WD) 1 (signal) Chassis ground - 0V
WSS RR connector 1 (power) Chassis ground - Approx. 11.2V
WSS RR extension harness connector (4WD) 2 (power) Chassis ground - Approx. 11.2V
Oscilloscope (WSS)
  1. Clear all DTCs in the system with KDS.
  2. Ignition "ON".
  3. Measure the waveform using VMI of KDS.
  4. Disconnect the connector(s) from WSS.
 WSS RR connector 1 (power) Chassis ground - Fig.1
WSS RR extension harness connector (4WD) 2 (power) Chassis ground - Fig.1

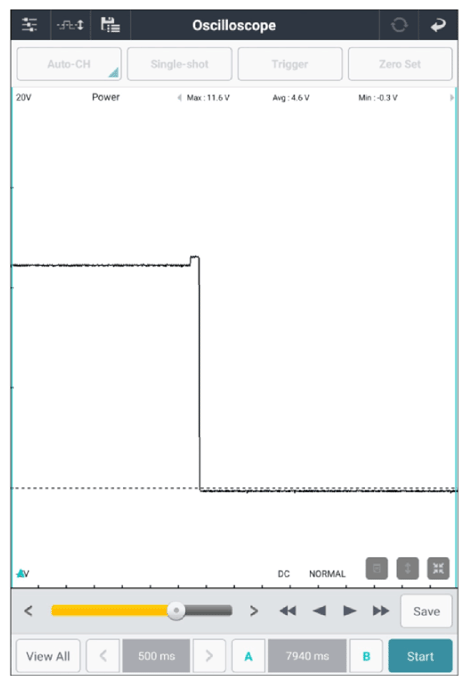

G15718296Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
