Circuit Inspection

G15718239Courtesy of KIA MOTORS AMERICA, INC.
G15718240Courtesy of KIA MOTORS AMERICA, INC.
Inspection Item Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
Short in circuit inspection (WSS ↔ Chassis ground)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from WSS.
 WSS RL connector 2 (signal) Chassis ground - ∞ (infinity)Ω
WSS RL extension harness connector (4WD) 1 (signal) Chassis ground - ∞ (infinity)Ω
Open in circuit inspection (WSS ↔ HECU)
  1. Ignition "OFF".
  2. Disconnect the connector(s) from WSS, HECU.
 WSS RL connector 2 (signal) HECU connector 41 (signal) Approx. below 1Ω
WSS RL extension harness connector (4WD) 1 (signal) HECU connector 41 (signal) Approx. below 1Ω
WSS RL connector 1 (power) HECU connector 25 (power) Approx. below 1Ω
WSS RL extension harness connector (4WD) 2 (power) HECU connector 25 (power) Approx. below 1Ω
Voltage inspection (WSS ↔ Chassis ground)
  1. Connect the connector(s) from WSS.
  2. Ignition "ON".
 WSS RL connector 2 (signal) Chassis ground - 0V
WSS RL extension harness connector (4WD) 1 (signal) Chassis ground - 0V
WSS RL connector 1 (power) Chassis ground - Approx. 11.2V
WSS RL extension harness connector (4WD) 2 (power) Chassis ground - Approx. 11.2V
Oscilloscope (WSS)
  1. Clear all DTCs in the system with KDS.
  2. Ignition "ON".
  3. Measure the waveform using VMI of KDS.
  4. Disconnect the connector(s) from WSS.
 WSS RL connector 1 (power) Chassis ground - Fig.1
WSS RL extension harness connector (4WD) 2 (power) Chassis ground - Fig.1

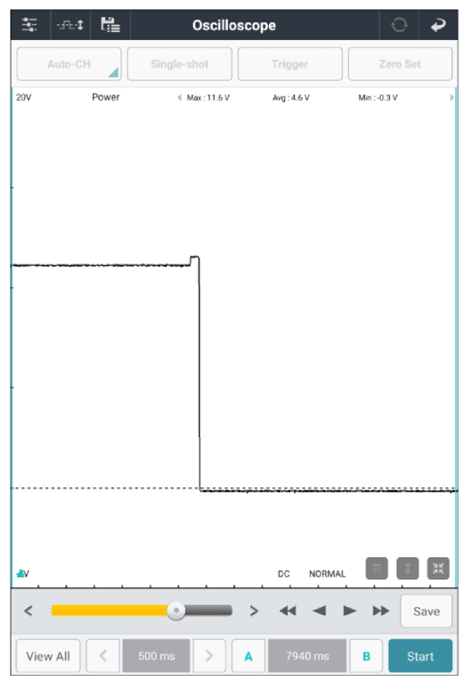

G15718241Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
