Component Inspection

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Oscilloscope (WSS)	Measure the oscilloscope by connecting a 180Ω resistor between the (+) Probe and the (-) Probe. Engine "ON". Driving.	WSS FR connector	1 (power)	Chassis ground	-	Fig.1 to 3
Resistance inspection (WSS)	Ignition "OFF". Disconnect the connector(s) from WSS.	WSS FR (component side)	1 (power)	WSS FR (component side)	2 (signal)	Approx. 72kΩ

G15718220

Courtesy of KIA MOTORS AMERICA, INC.

* Connecting the resistor to the WSS occurs a DTC. Check the oscilloscope and clear the DTC.

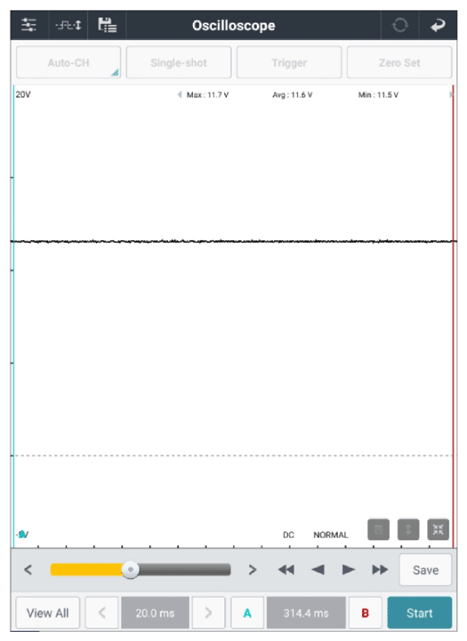

G15718221

Courtesy of KIA MOTORS AMERICA, INC.

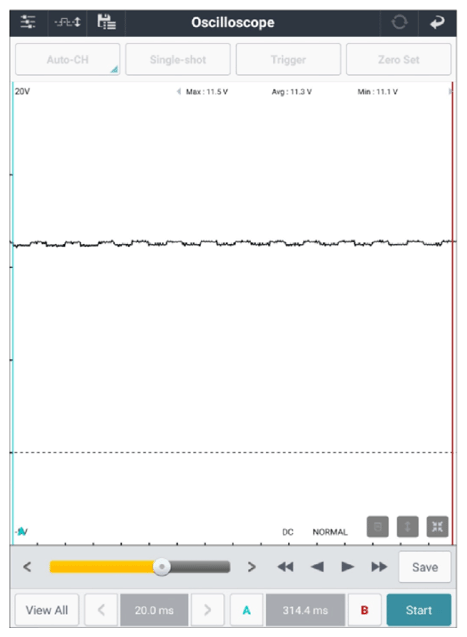

G15718222

Courtesy of KIA MOTORS AMERICA, INC.

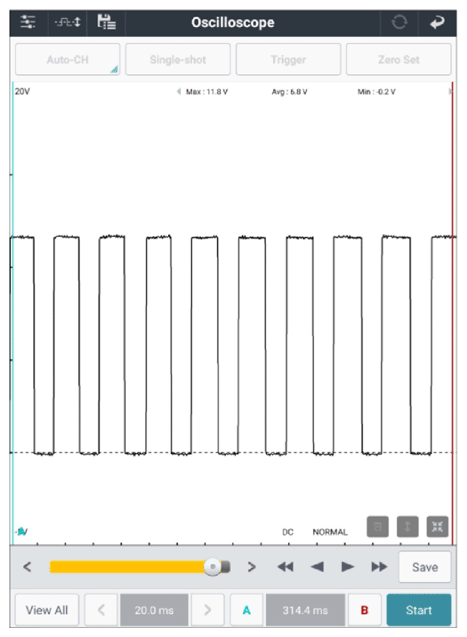

G15718223

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors and connections for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the WSS and Go to "VERIFICATION OF REPAIR " procedure.
