Terminal function

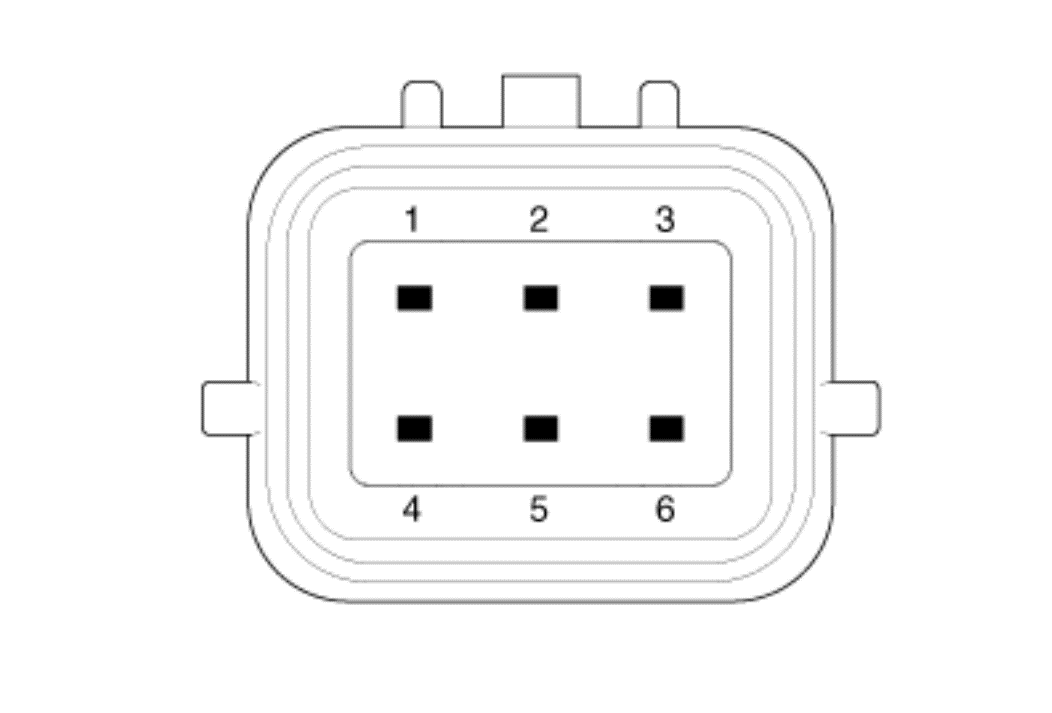

G15709372Courtesy of KIA MOTORS AMERICA, INC.
Pin No Description
1 IGN1
2 Brake signal
3 -
4 B+
5 Stop lamp signal
6 Ground
