Stop Lamp Switch: Replacement

  1. Switch "OFF" ignition and disconnect the negative (-) battery terminal.
  2. Remove the knee airbag (KAB) module.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

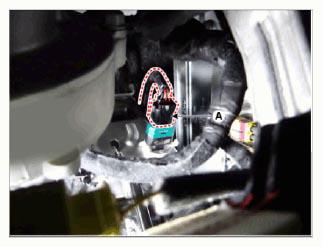

  3. Disconnect the stop lamp switch connector (A).
    G15709382Courtesy of KIA MOTORS AMERICA, INC.

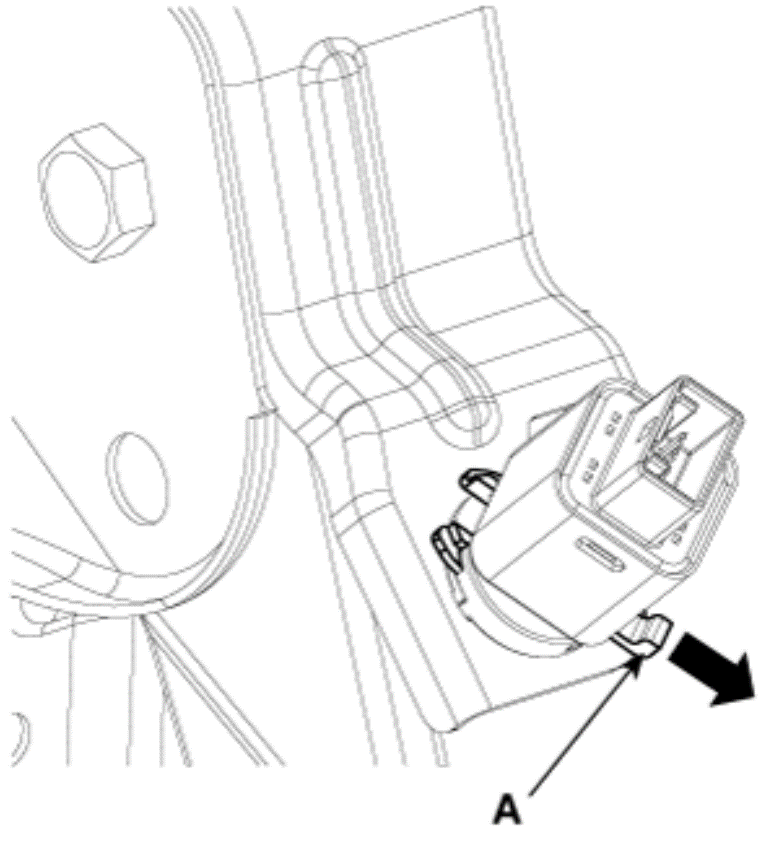

  4. Pull the locking plate (A) as indicated by the arrow.
    G15709383Courtesy of KIA MOTORS AMERICA, INC.

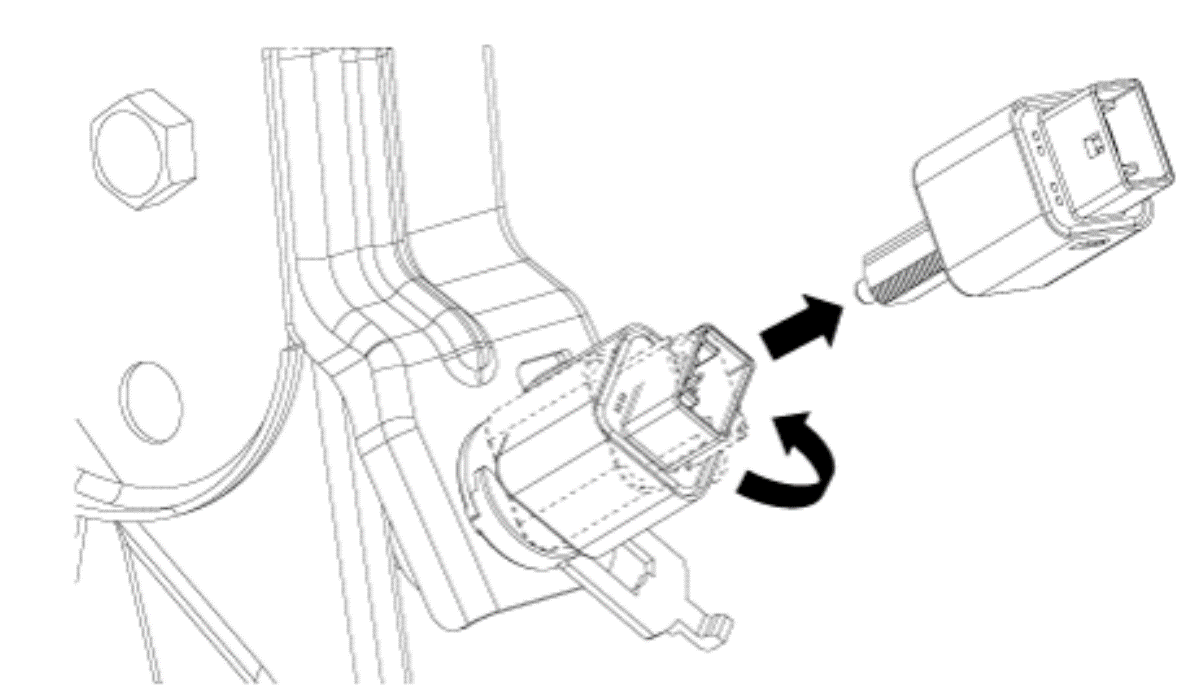

  5. Turn brake switch 45° counterclockwise and remove it.
    G15709384Courtesy of KIA MOTORS AMERICA, INC.
  6. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part.
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
    G15709385Courtesy of KIA MOTORS AMERICA, INC.

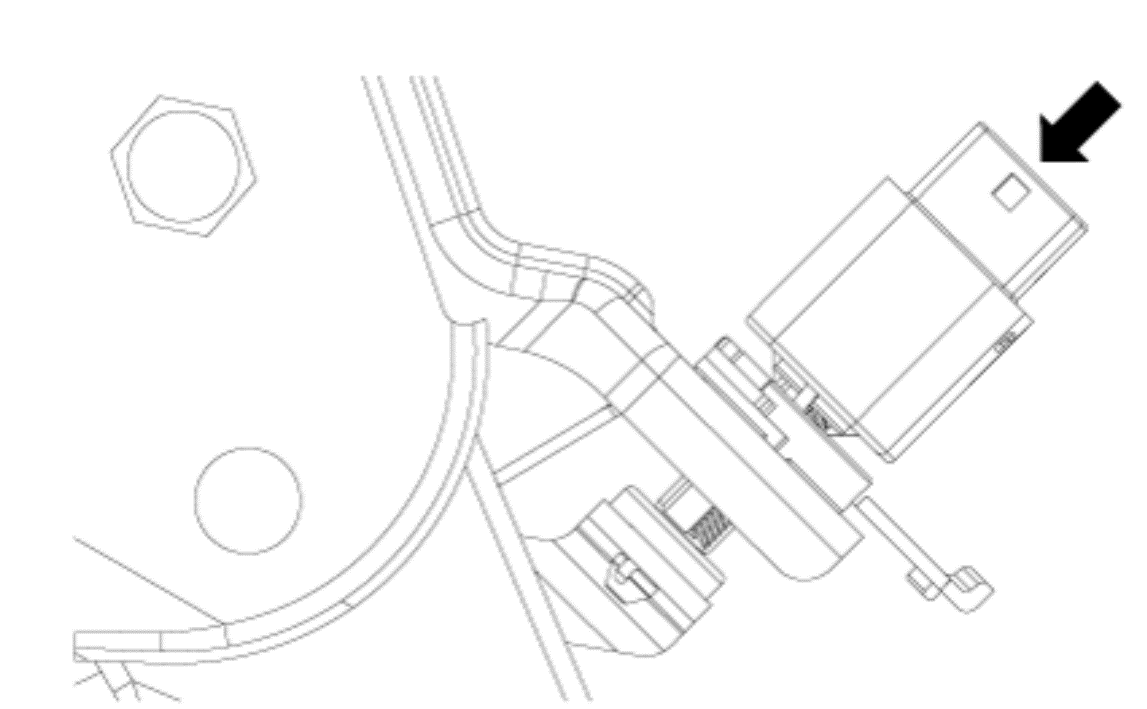

  7. Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.
    G15709386Courtesy of KIA MOTORS AMERICA, INC.

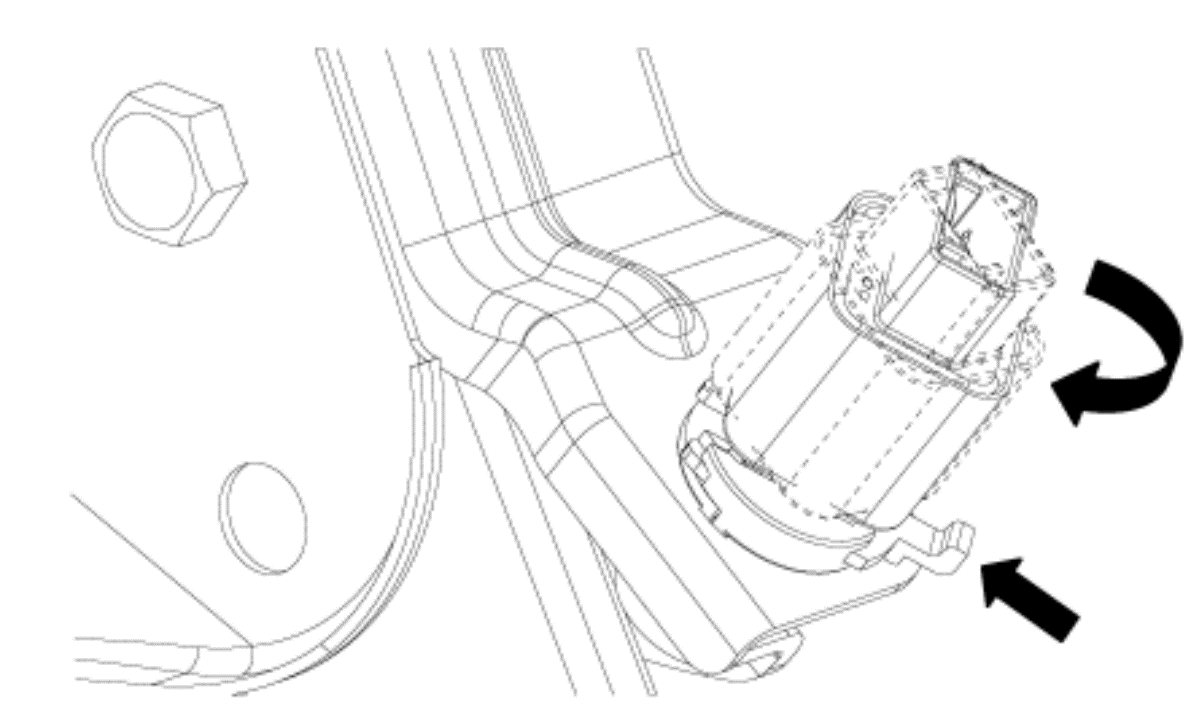

  8. After inserting, turn the brake switch 45° clockwise, and then assemble locking plate by pushing.
    G15709387Courtesy of KIA MOTORS AMERICA, INC.

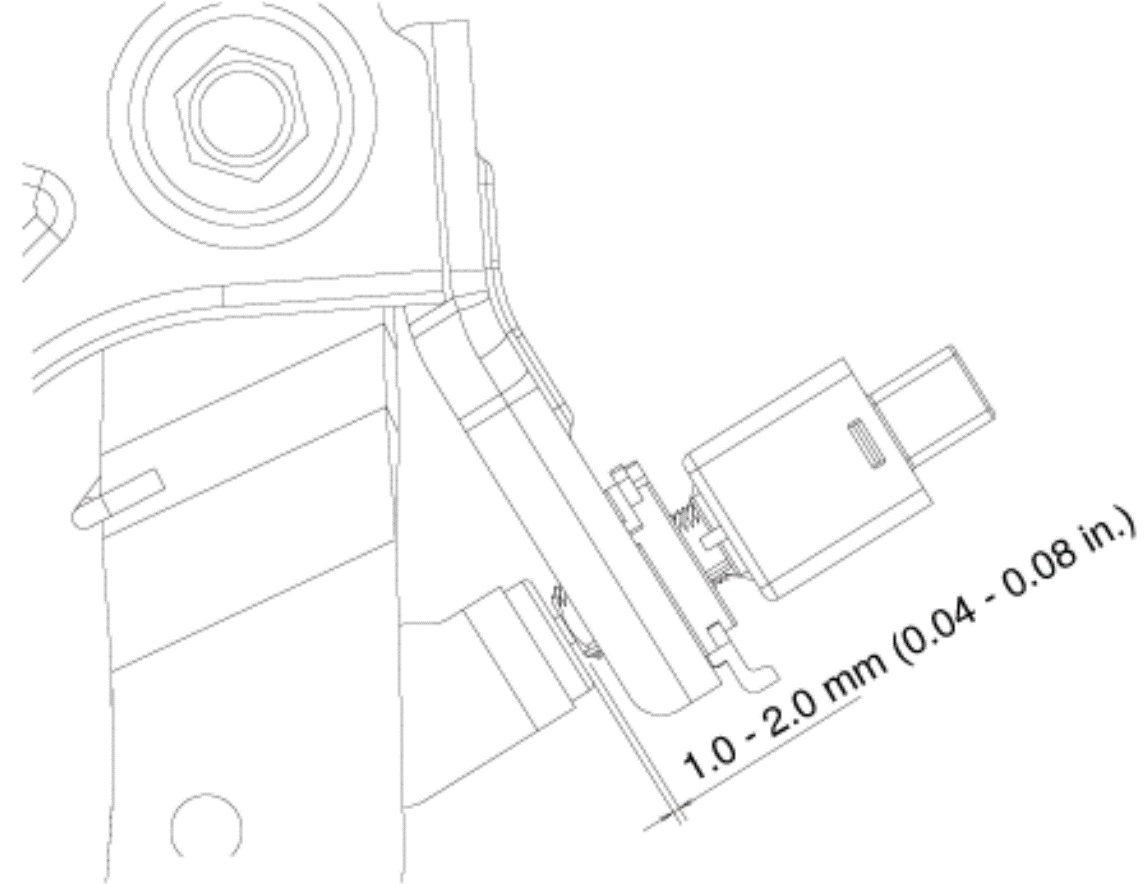

  9. Confirm the gap between stop lamp switch and bracket.

    Stop lamp clearance (A):

    1.0 - 2.0 mm (0.04 - 0.08 in.)

    G15709388Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
    • If everything is normal, reinstall the stop lamp switch and check the clearance again.

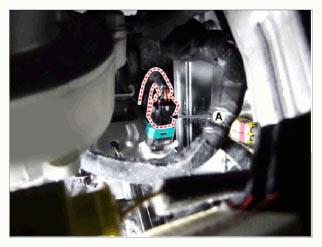

  10. Connect the stop lamp switch connector (A).
    G15709389Courtesy of KIA MOTORS AMERICA, INC.
  11. Install the other parts in the reverse order of removal.
